        AWC75EFN

        Waveguide to Coax Adapter

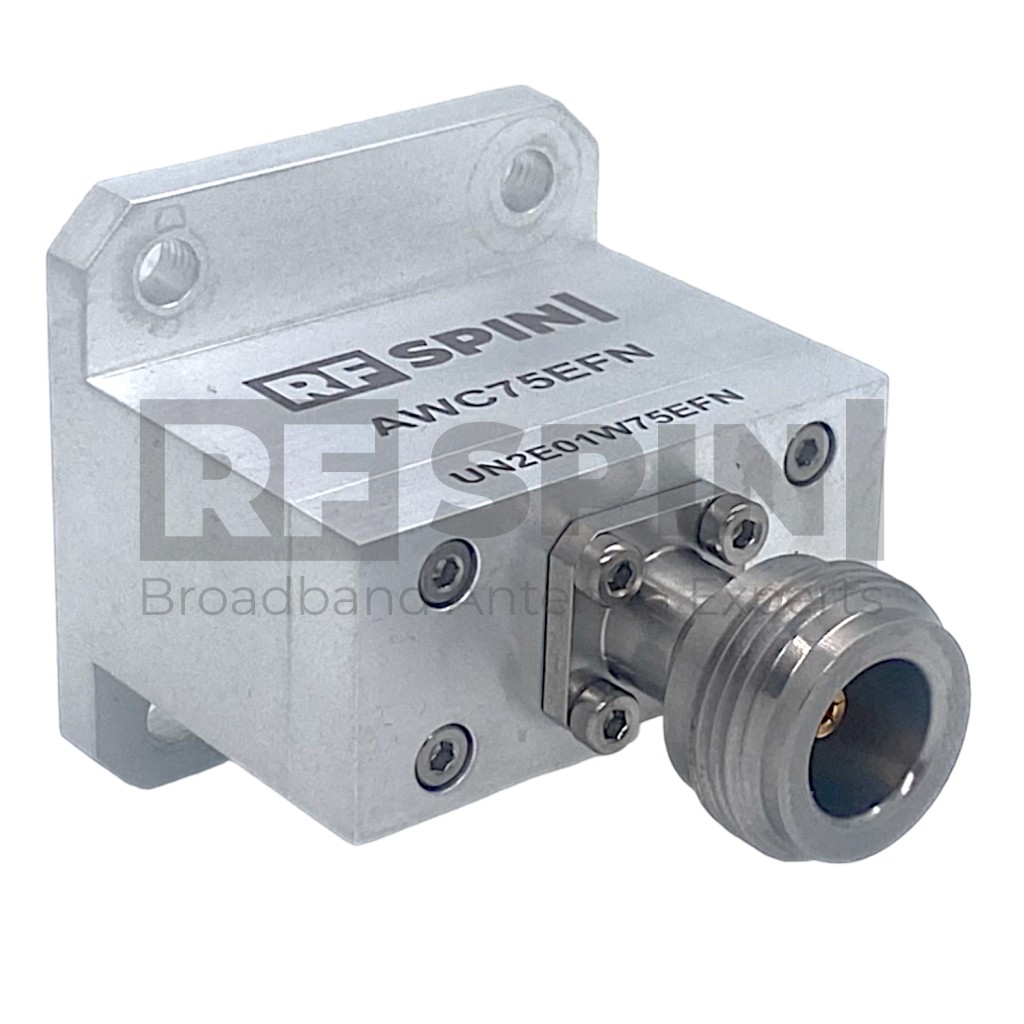

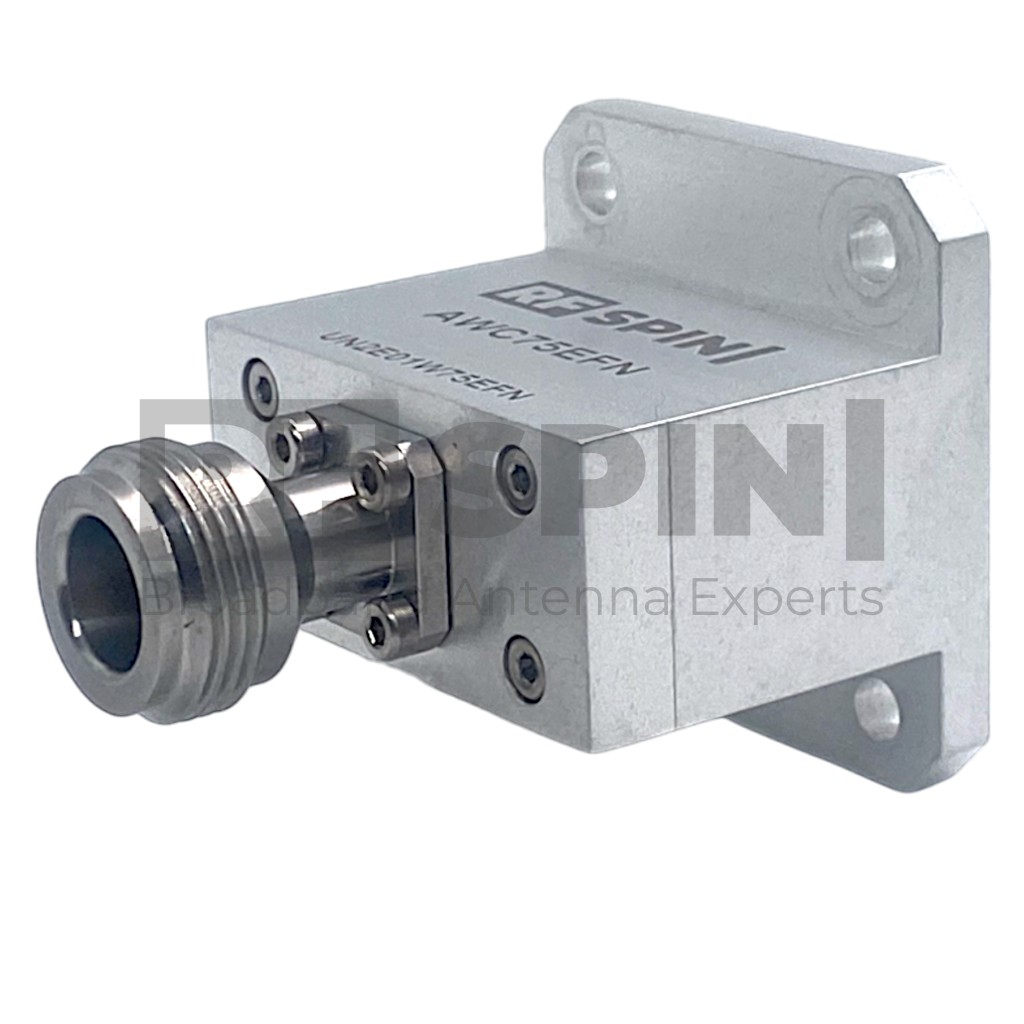

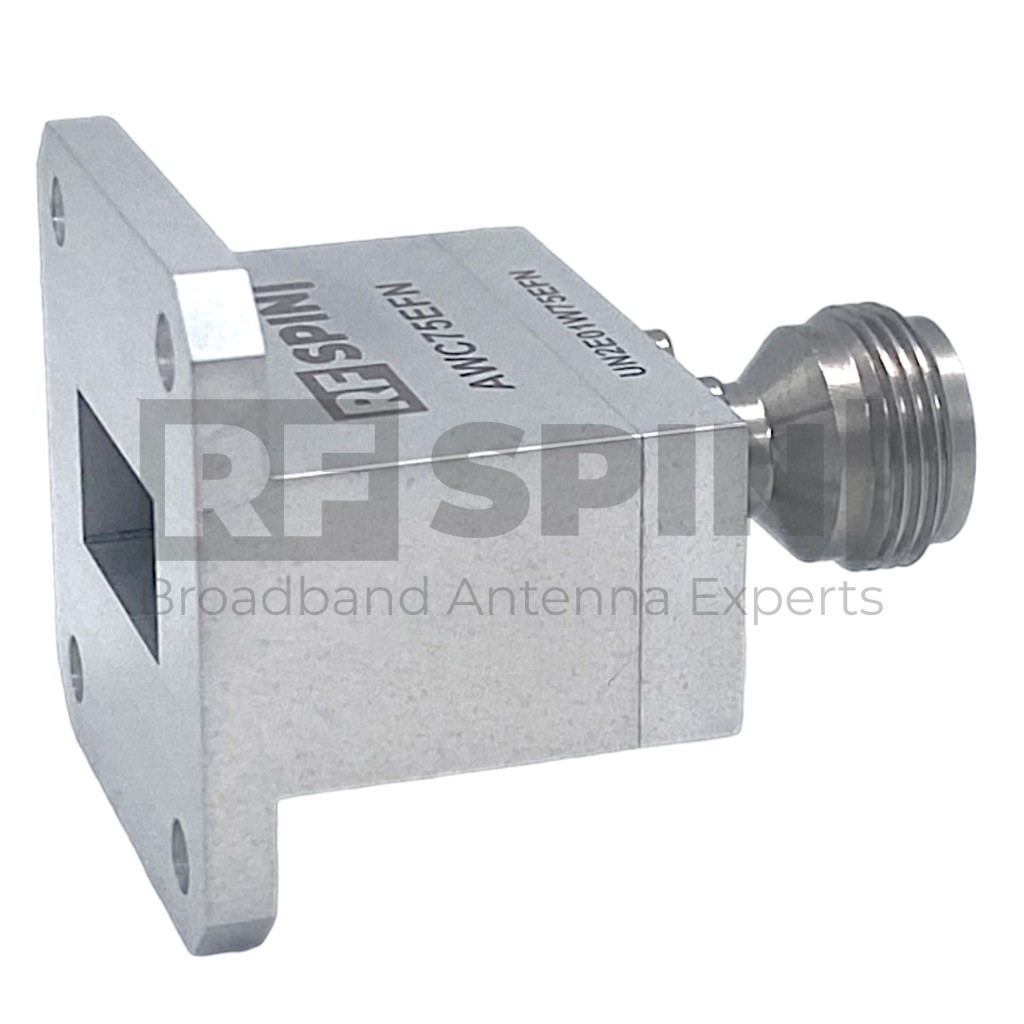

        This Waveguide to Coax Adapter AWC75EFN is manufactured with an end-launch design. RF SPIN is using only high-grade aluminum and design with the fewest components to ensure top quality and superb performance. This AWC75EFN has waveguide size WR-75 and flange. Using a great quality N female connector that is 50 Ohm is a matter of course.

        Waveguide to Coax Adapter covers a frequency band from 10 GHz up to 15 GHz ensuring the extra performance of VSWR lower than 1.25 and low insertion loss.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration

        Design and Surface Treatment

        • Corrosion-resistant coating

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable
        • High quality N type coaxial connector

        Product Packaging Includes

        • Waveguide to Coax Adapter

        Product Parameters

        Product identification

        • Product Name AWC75EFN
        • Product Category Waveguide to Coax Adapter

        Electrical specifications

        • Frequency Range 10 GHz – 15 GHz
        • VSWR (max.) 1.25
        • VSWR (avg.) 1.15
        • Impedance 50 Ohm
        • Insertion Loss (max.) 0.6 dB
        • Connector N (female)
        • Waveguide Size WR75
        • Waveguide Flange UBR 120
        • Power (CW / Peak) 150 W / 250 W

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Packaging and Accessories

        What's in a box

        • AWC75EFN Device
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Factory calibration report
