        RF SPIN

        Broadband Antenna Solutions

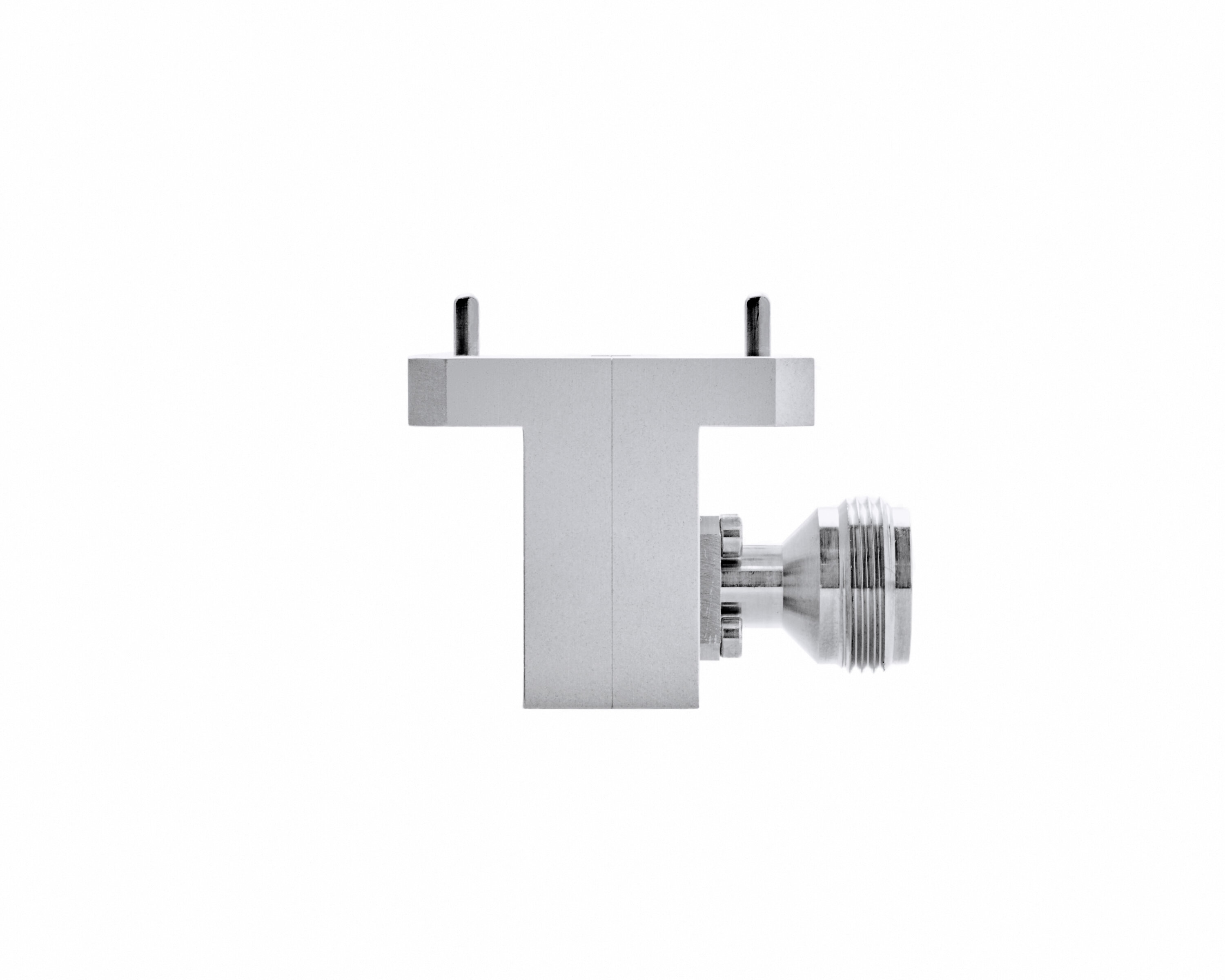

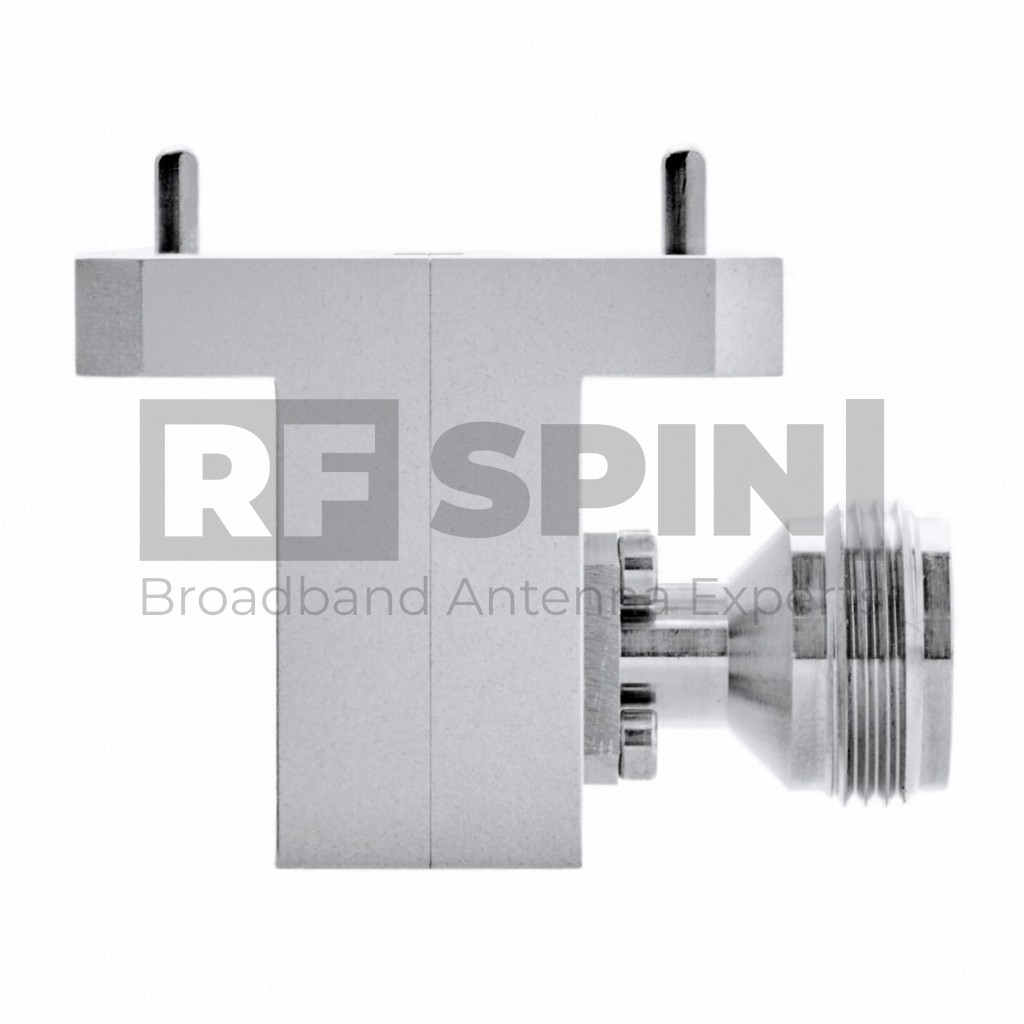

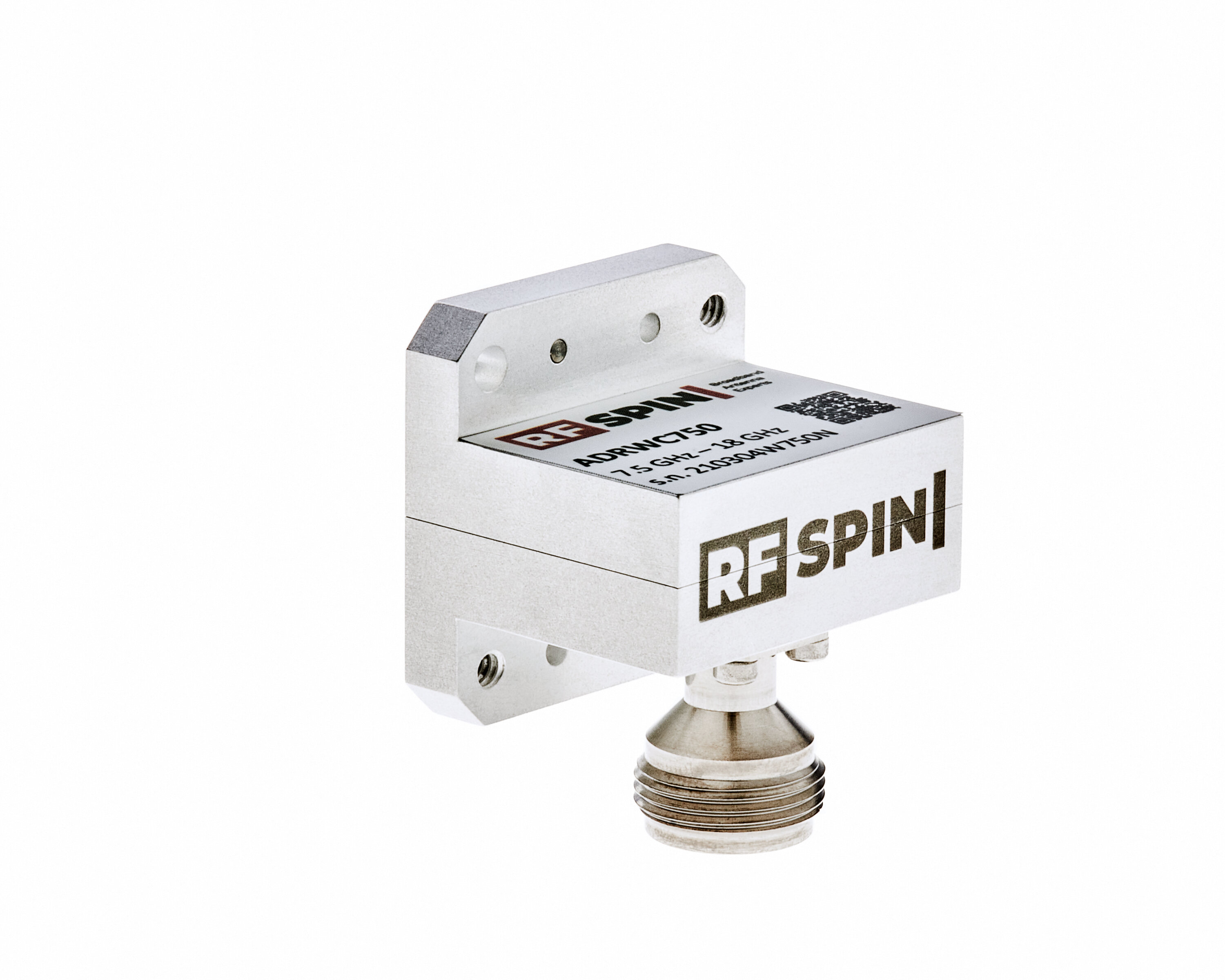

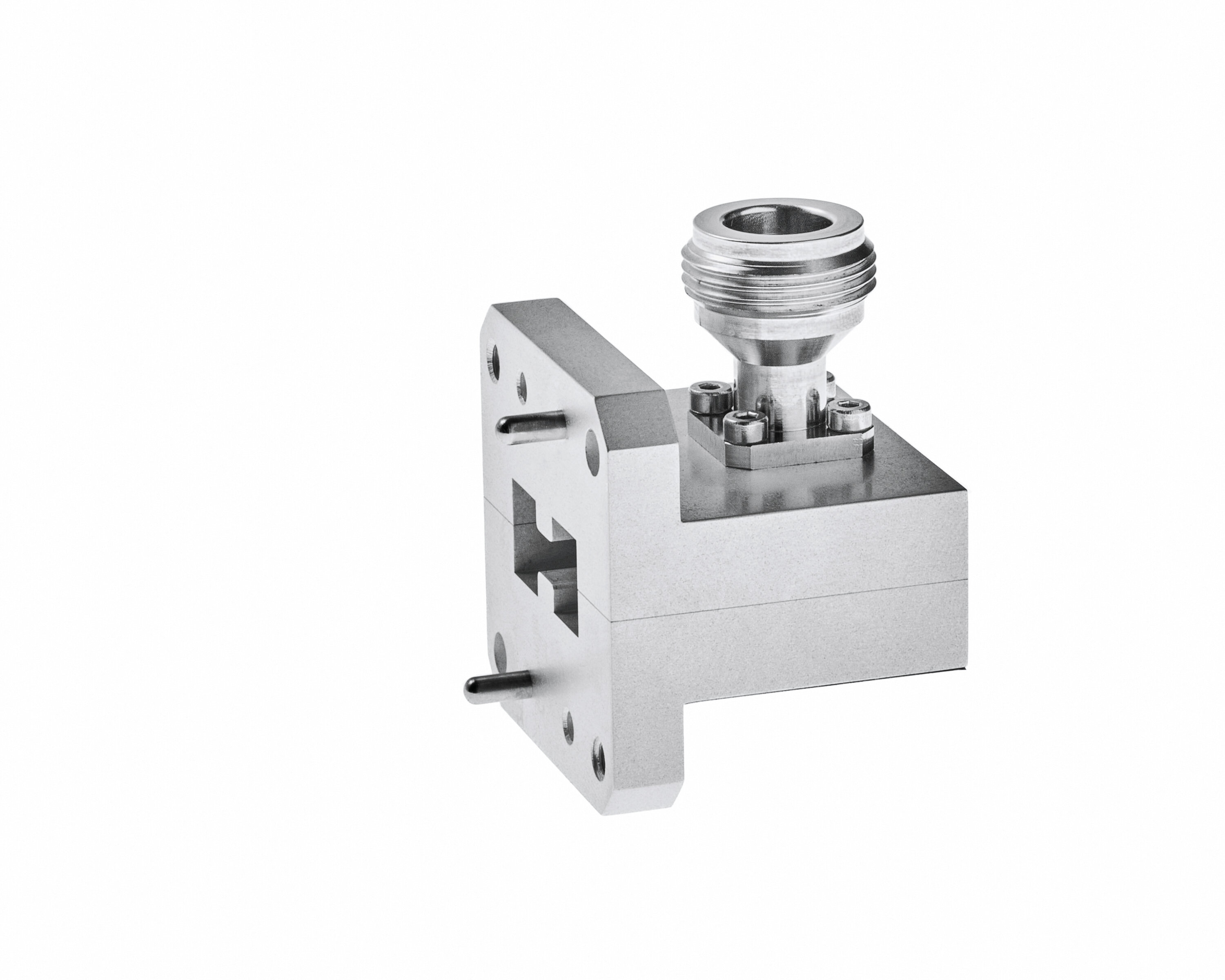

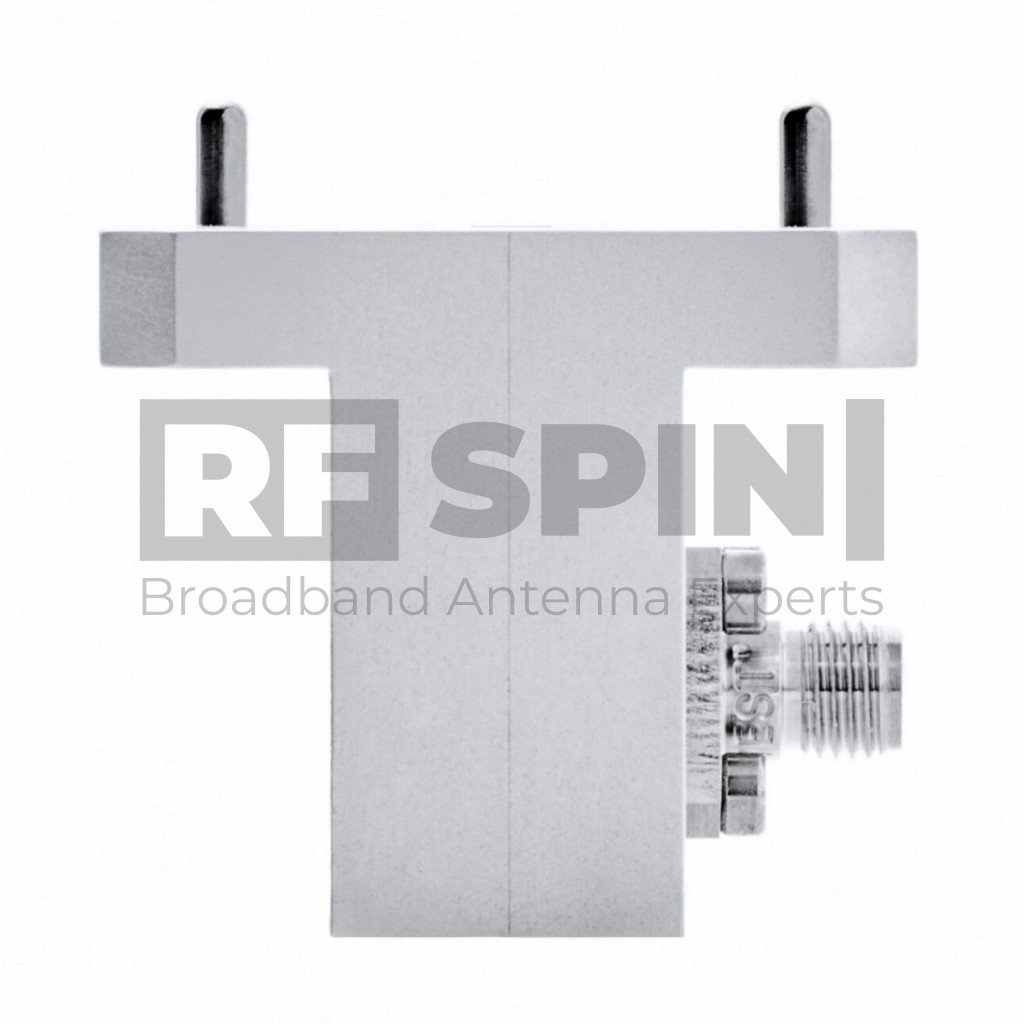

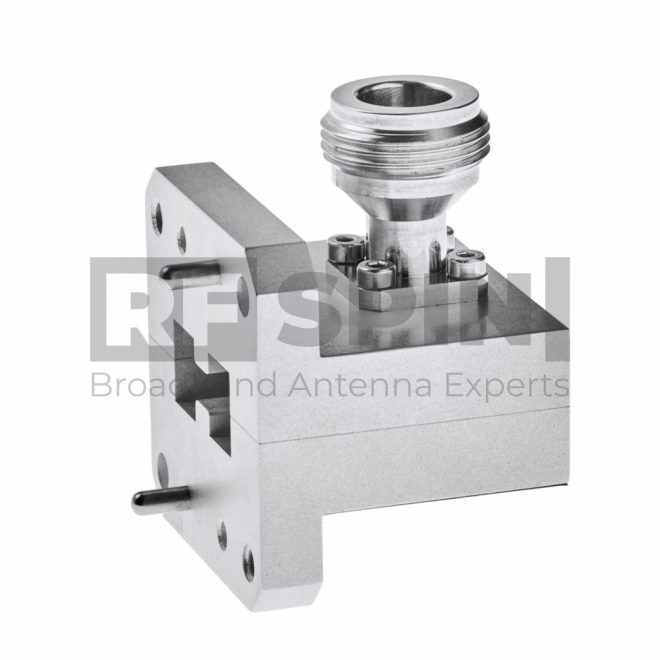

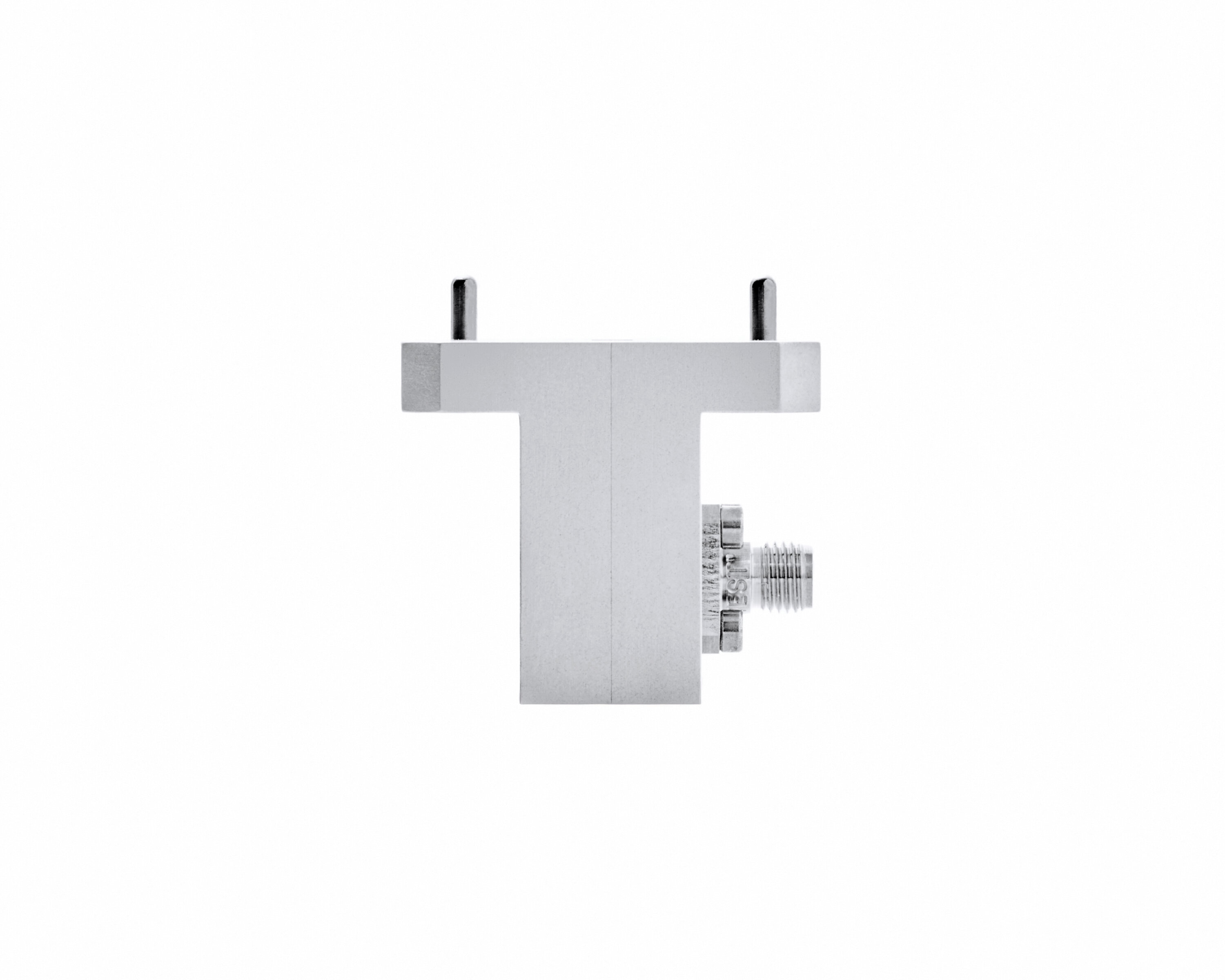

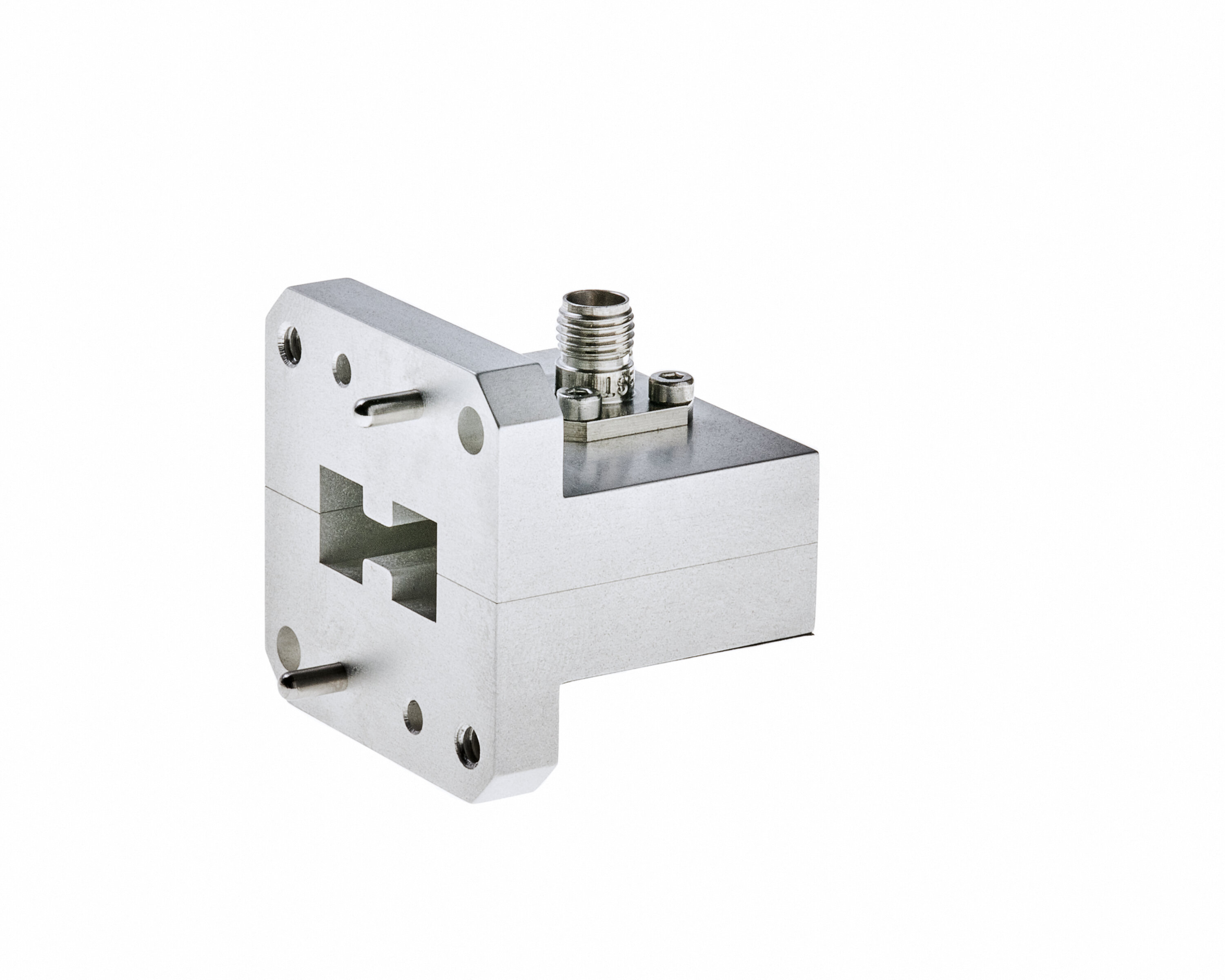

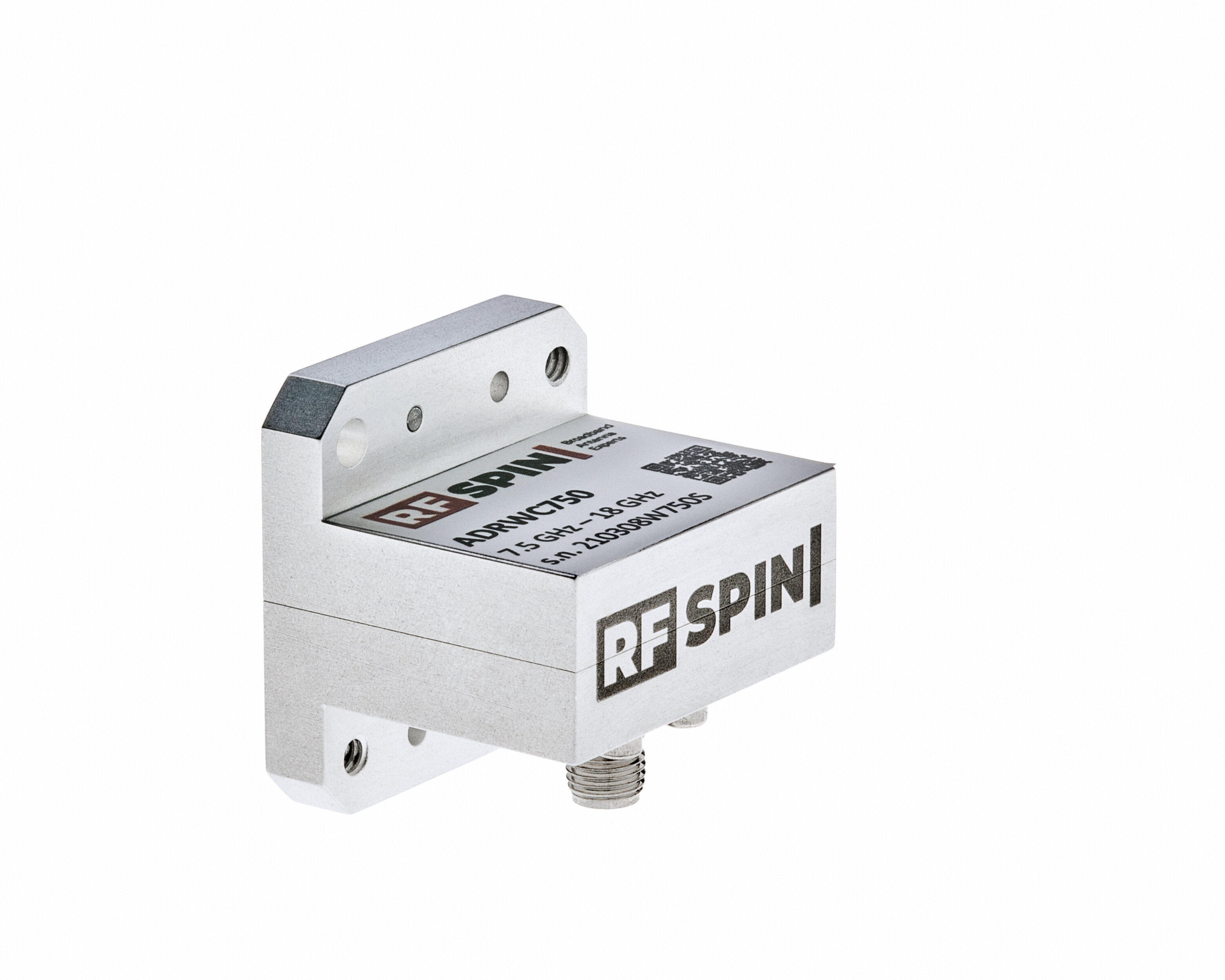

        ADRWC750

        Waveguide to Coax Adapter

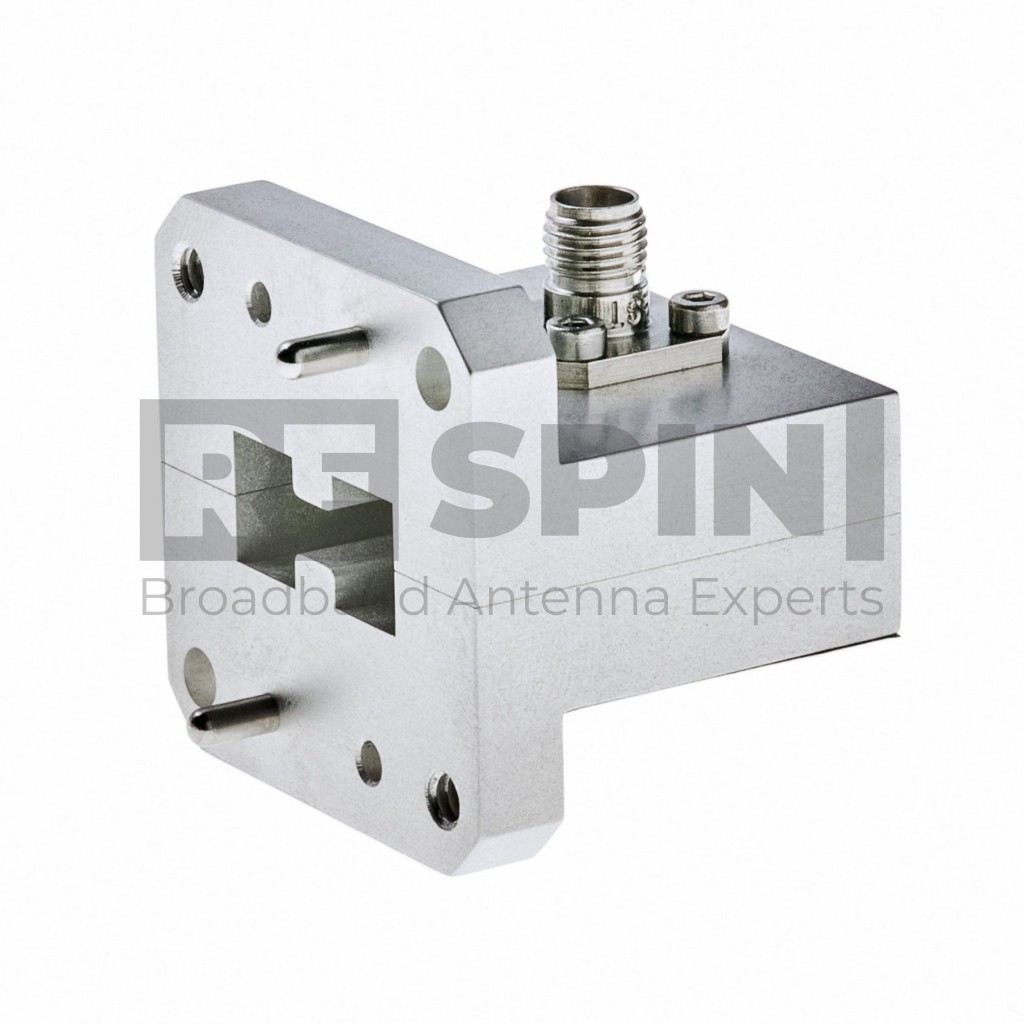

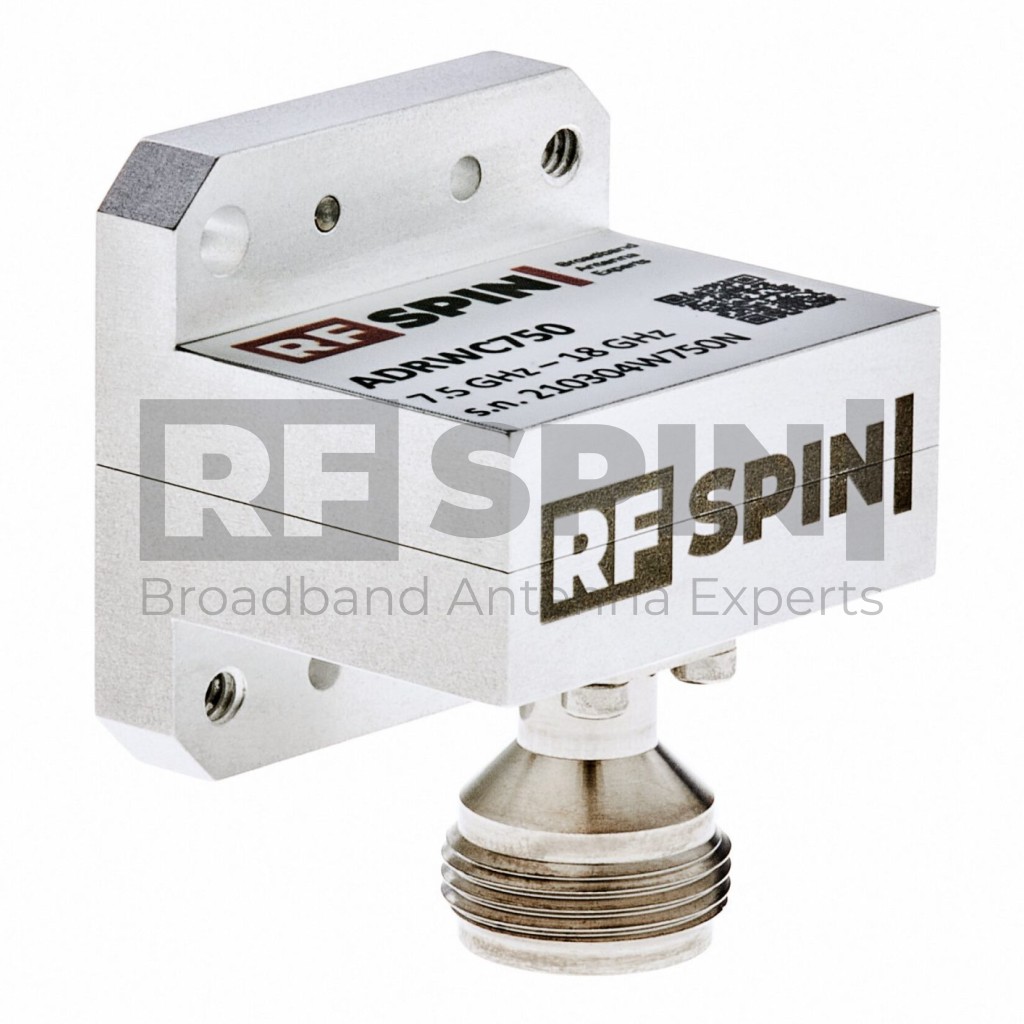

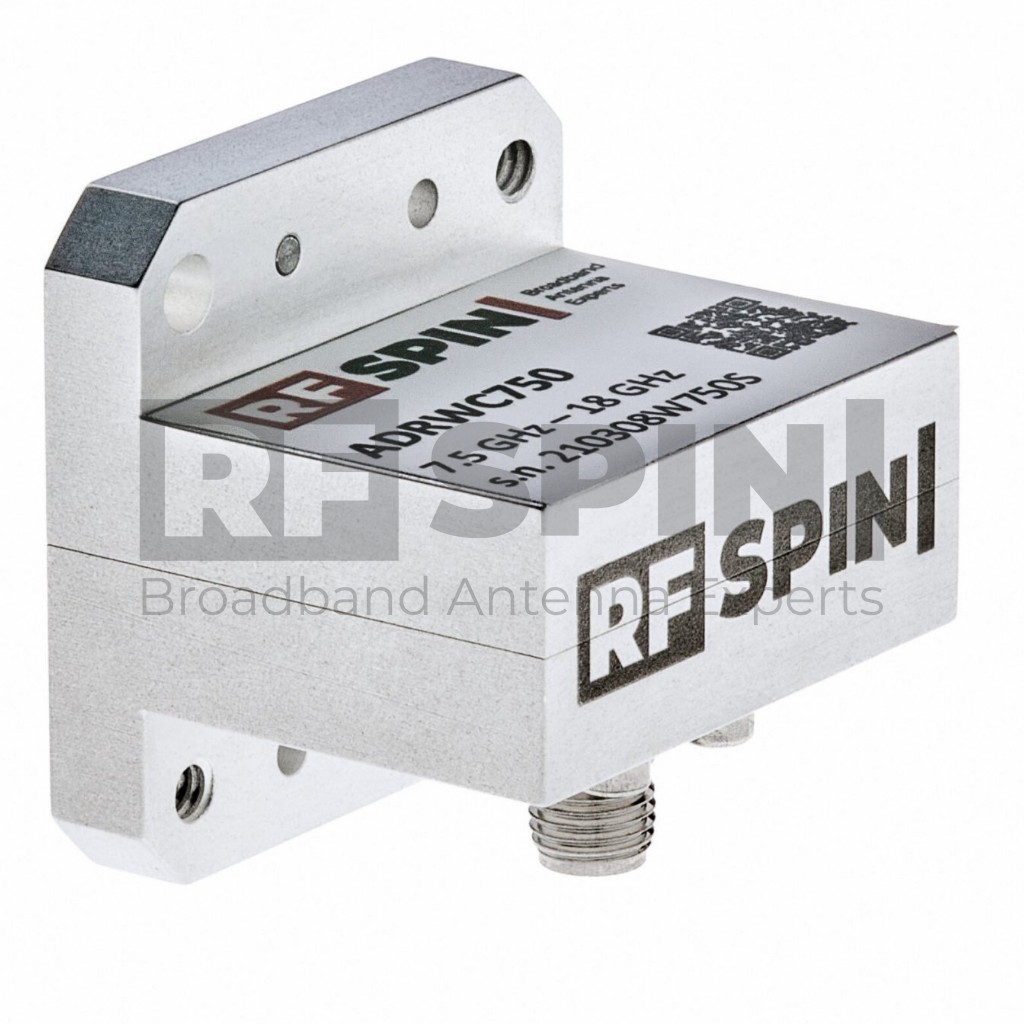

        This Double Ridged Waveguide to Coax Adapter ADRWC750 is manufactured with a right-angle design. RF SPIN is using only high-grade aluminum and design with the fewest components to ensure top quality and superb performance. This ADRWC750 has waveguide size WRD750 and flange. Using a great quality N or SMA female connector (based on your request) that is 50 Ohm is a matter of course.

        Double Ridged Waveguide to Coax Adapter has a frequency band from 7.5 GHz up to 18 GHz ensuring the extra performance of VSWR lower than 1.25 and low insertion loss below 0.4 dB. It is suitable with RF SPIN Double Ridged Waveguide Horn DRH818.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration

        Design and Surface Treatment

        • Corrosion-resistant coating

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable
        • High quality SMA type coaxial connector
        • High qulity N type coaxial connector

        Product Packaging Includes

        • Waveguide to Coax Adapter

        Product Parameters

        Product identification

        • Product Name ADRWC750
        • Product Category Waveguide to Coax Adapter

        Electrical specifications

        • Frequency Range 7.5 GHz – 18 GHz
        • VSWR (max.) 1.25
        • VSWR (avg.) 1.15
        • Impedance 50 Ohm
        • Insertion Loss (max.) 0.4 dB
        • Connector N, SMA
        • Waveguide Size WRD750
        • Waveguide Flange FPWRD750D24
        • Power (CW / Peak) 100 W / 170 W

        Physical specifications

        • Length 50 mm (1.969 in)
        • Width 34.9 mm (1.374 in)
        • Height 34.9 mm (1.374 in)
        • Depth 30 mm (1.181 in)
        • Weight 0.060 kg (0.132 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Parameters and Performance

        Typical parameters

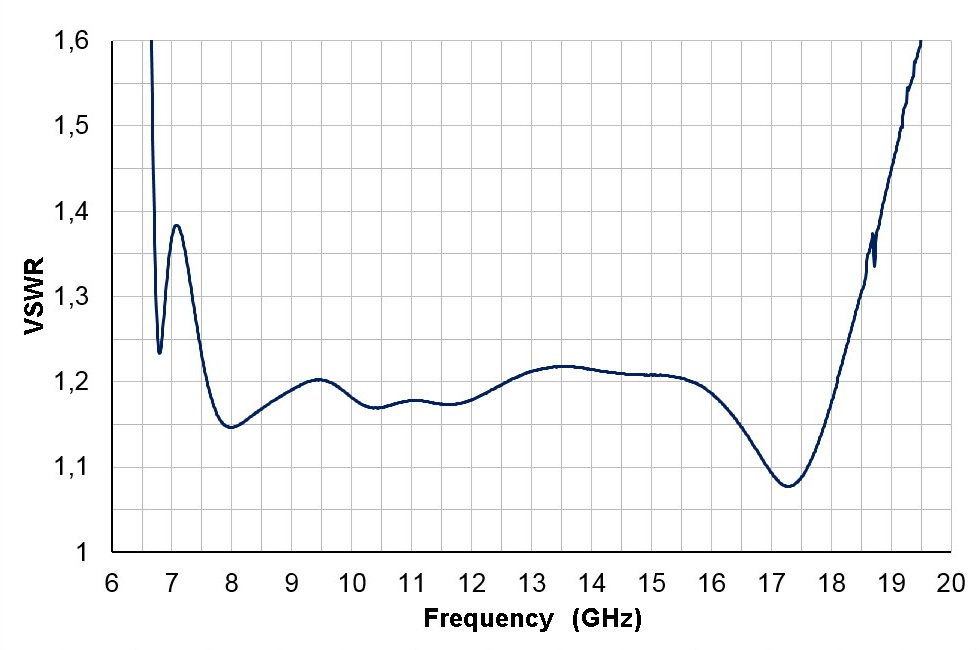

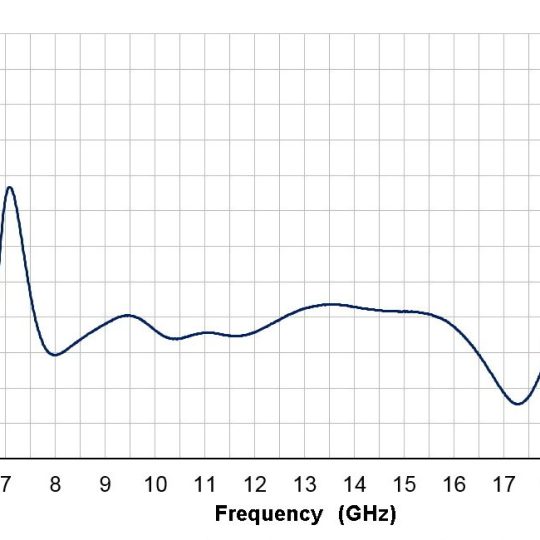

        VSWR

        ADRWC750 - PSV

        Packaging and Accessories

        What's in a box

        • ADRWC750 Device
        • Factory calibration certificate
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Optional Accessories
