        RF SPIN

        Broadband Antenna Solutions

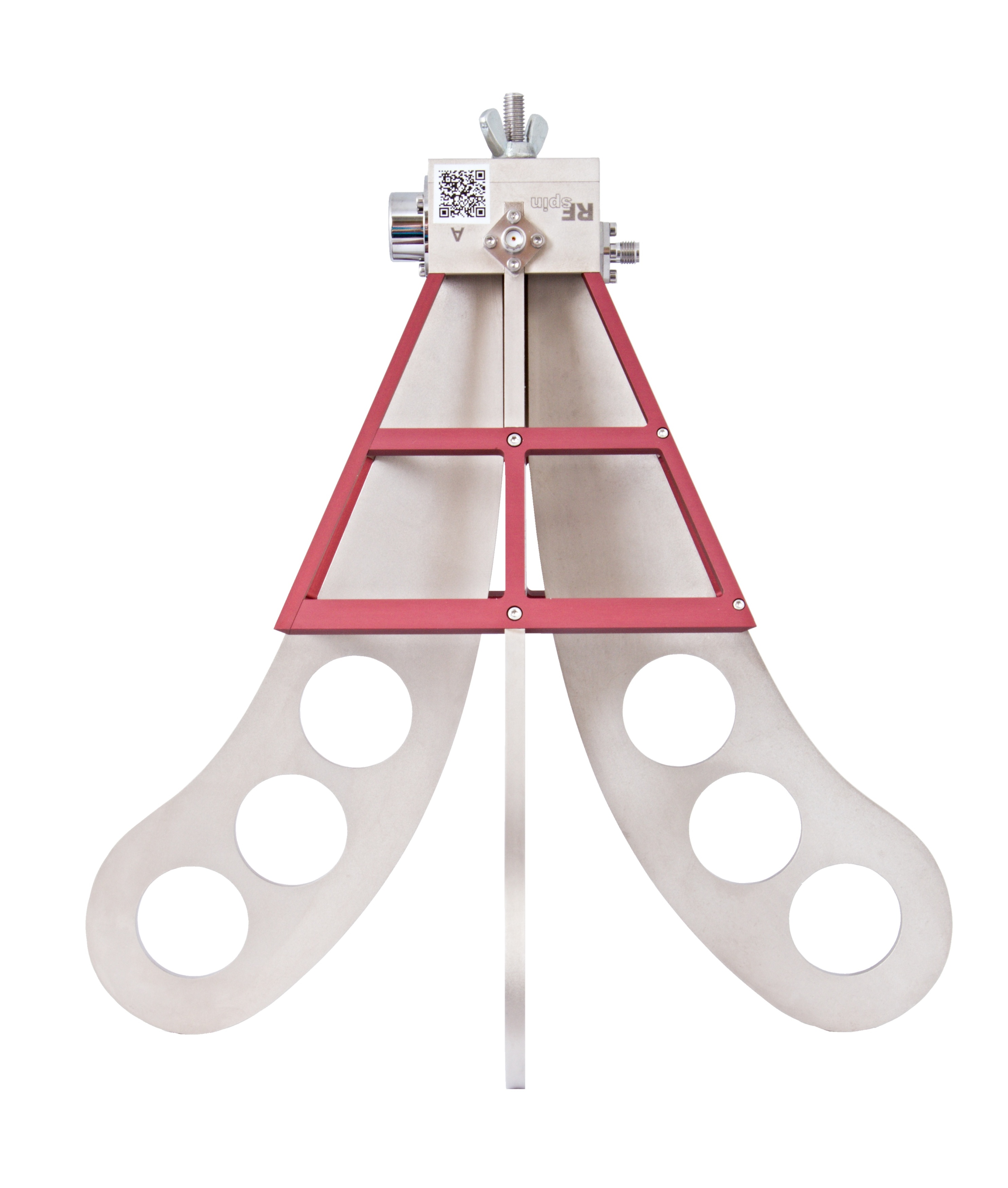

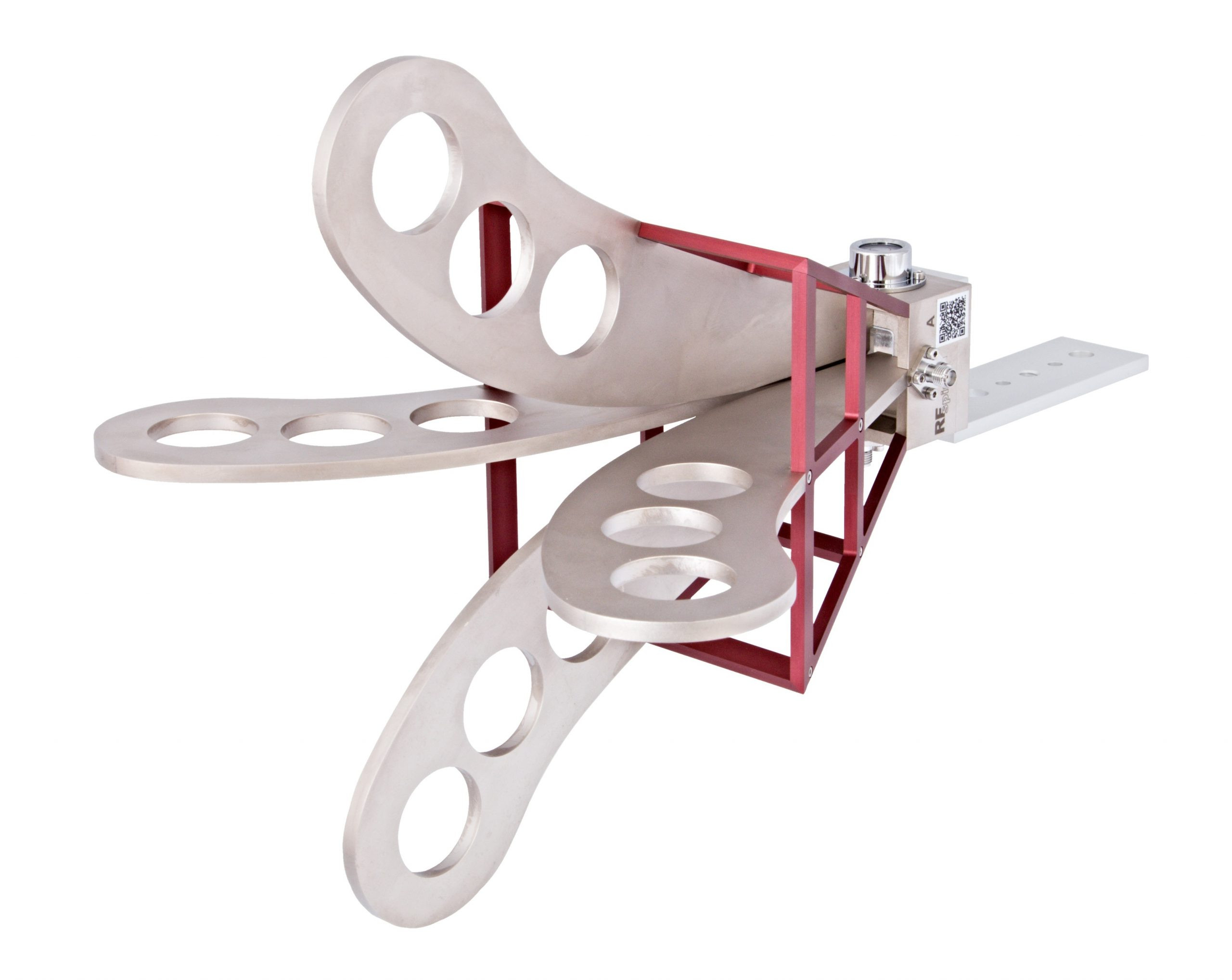

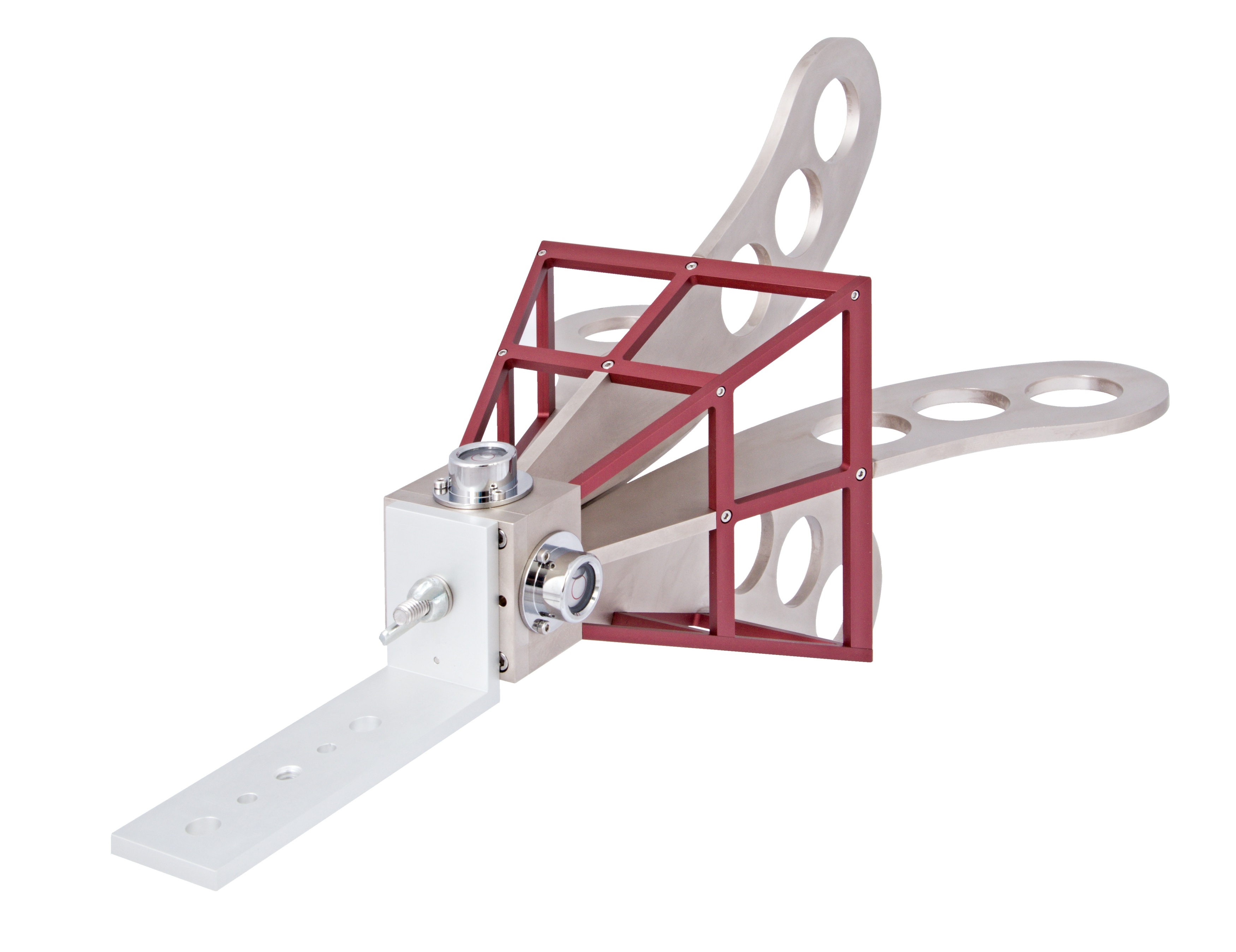

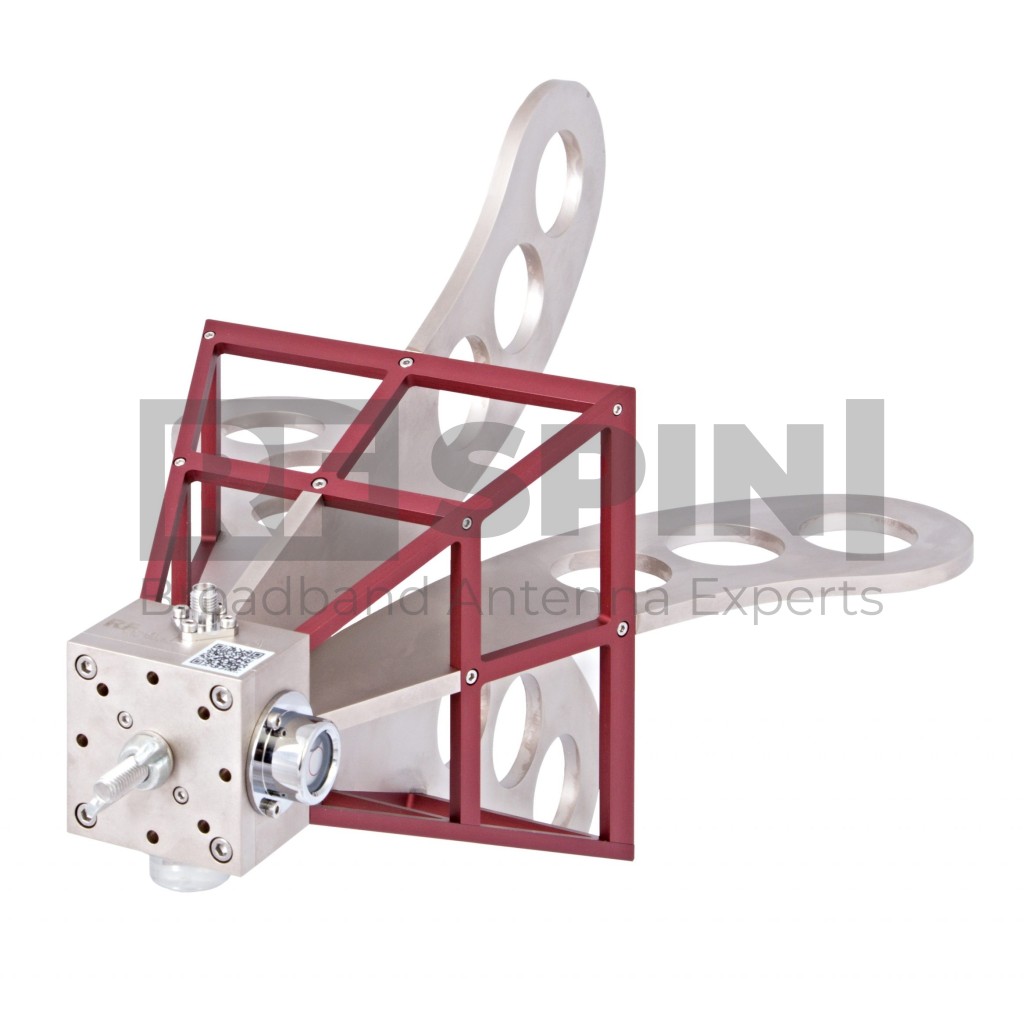

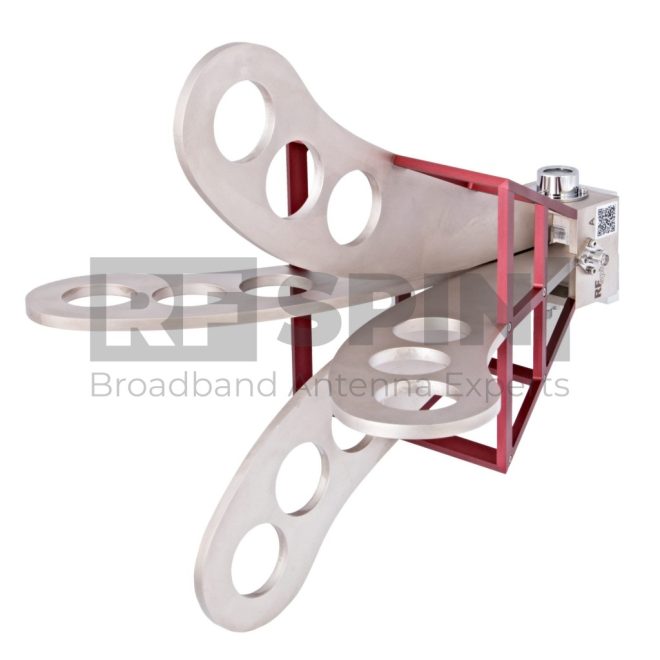

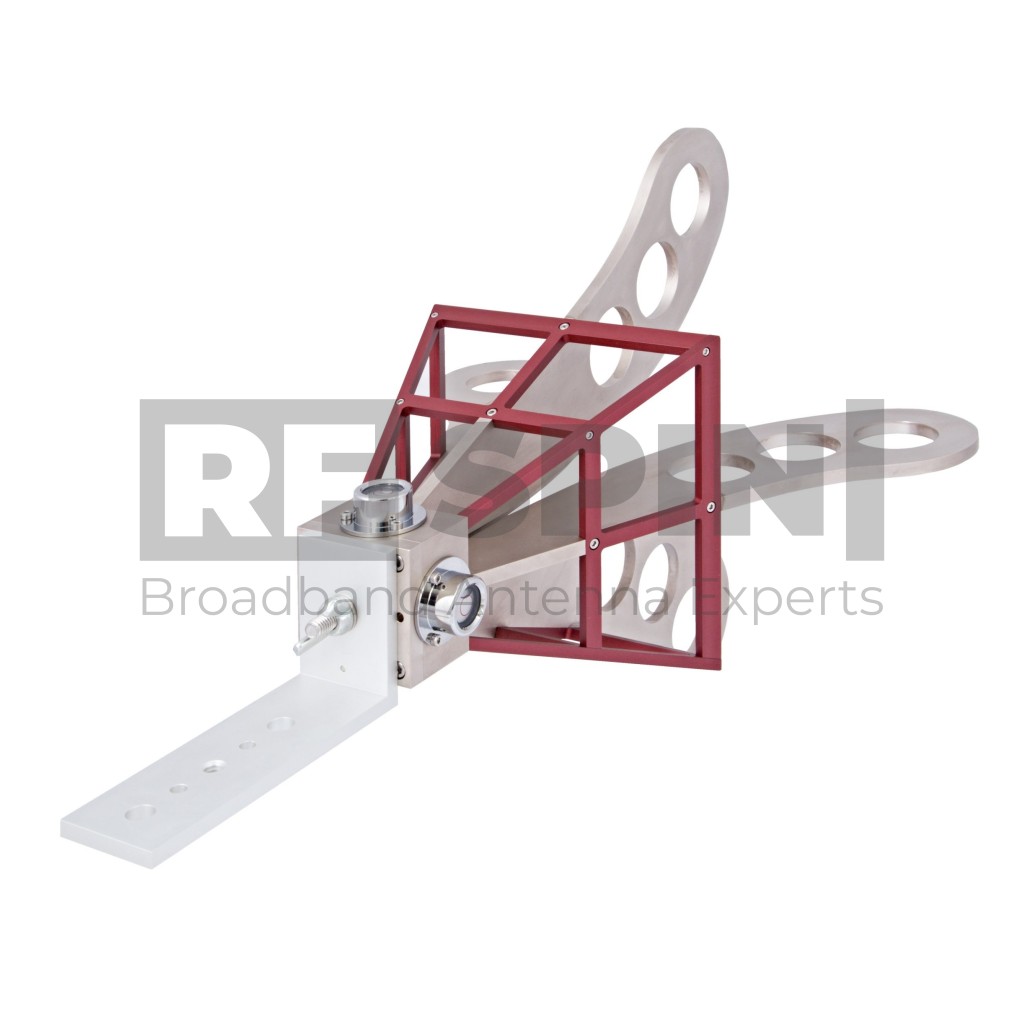

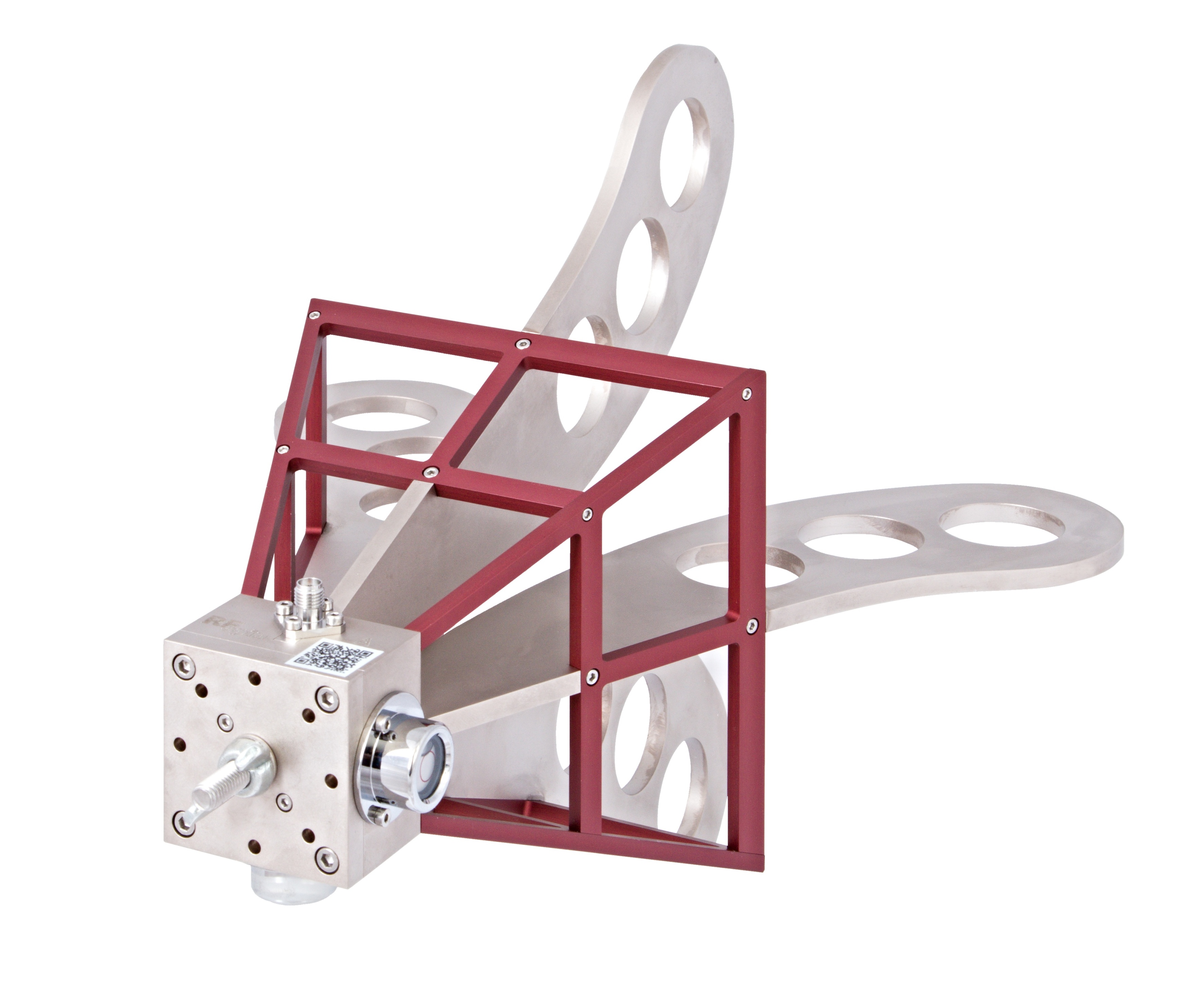

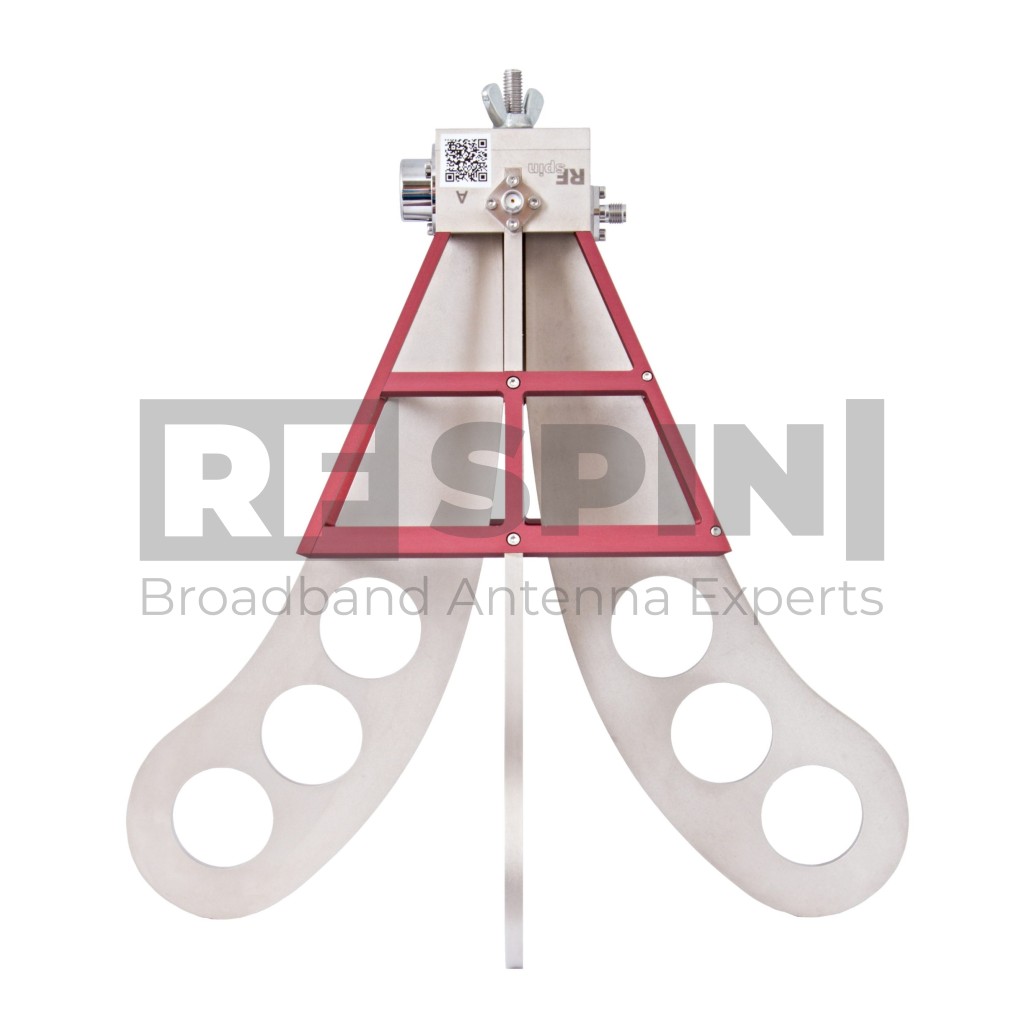

        QRH18

        Quad Ridged Horn Antenna

        The addition of two-spirit levels is a matter of course, thanks to which your measurement in both planes will be very accurate and fun.

        Cloned antenna series are available through AU Technology, which guarantees constant parameters.

        Manufactured with RF SPIN’s SPM Technology to achieve the best mechanical and radio parameters.

        See the equivalent outdoor antenna QRH18R

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

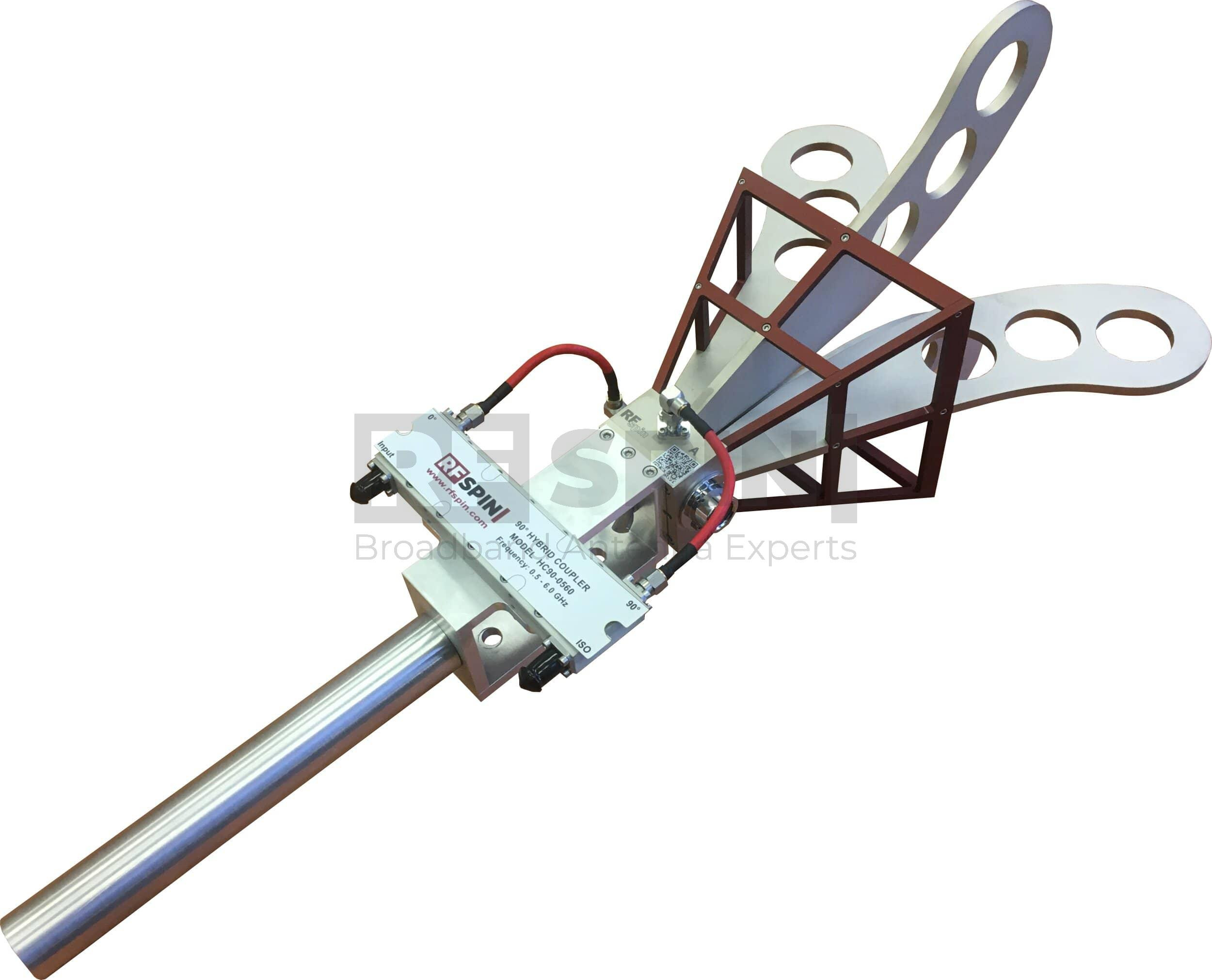

        Circular polarization
        QR code
        Radome version

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Includes standard mount
        • Very precise spirit level for both polarizations

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable
        • High quality SMA type coaxial connector

        Product Packaging Includes

        • Adapter with ¼ inch inner thread, supplied with antenna
        • Linear polarized double ridged broadband horn antenna

        Product Parameters

        Product identification

        • Product Name QRH18
        • Product Category Quad Ridged Horn Antenna

        Electrical specifications

        • Frequency Range 1 GHz – 18 GHz
        • VSWR (max.) 2.5
        • VSWR (avg.) 1.45
        • Impedance 50 Ohm
        • Connector SMA (female)
        • Power (CW / Peak) 100 W / 170 W
        • Antenna Factor 24.3 – 40 dB/m
        • Port Isolation -30 dB
        • Polarization Dual Linear, Circular (with hybrid)

        Physical specifications

        • Width 230.6 mm (9.079 in)
        • Height 229.1 mm (9.020 in)
        • Depth 230.6 mm (9.079 in)
        • Weight 0.65 kg (1.433 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Mounting flange

        • Mounting Adapter with ¼ inch inner thread, supplied with antenna

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

        VSWR

        QRH18 - VSWR

        Gain

        QRH18 - Gain

        Antenna Factor

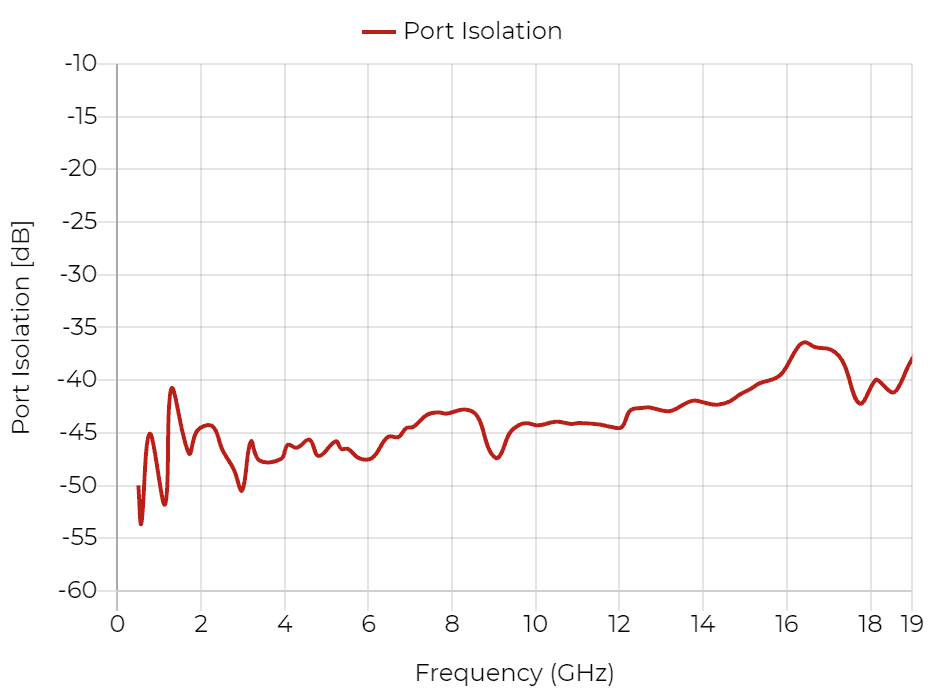

        QRH18 - Antenna Factor

        Port Isolation

        QRH18 - Port Isolation

        Cross Polarization

        QRH18 - Cross Polarization

        Beamwidth

        Port A, E plane

        QRH18 - Port A, E plane

        Port A, H plane

        QRH18 - Port A, H plane

        Port B, E plane

        QRH18 - Port B, E plane

        Port B, H plane

        QRH18 - Port B, H plane

        Radiation Patterns

        Port A, 1 GHz

        QRH18 - Port A, 1 GHz

        Port B, 1 GHz

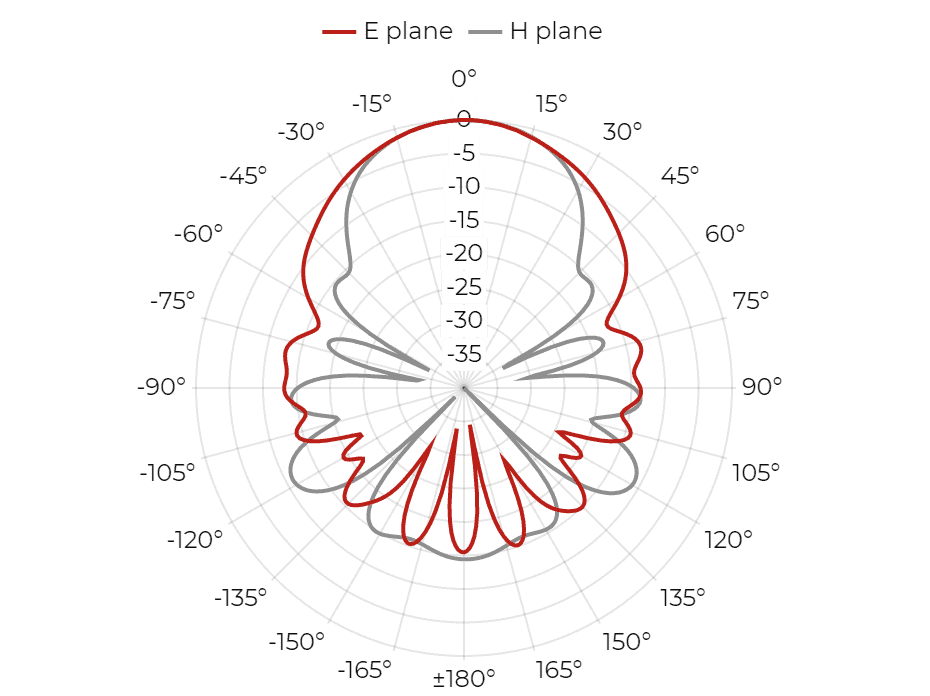

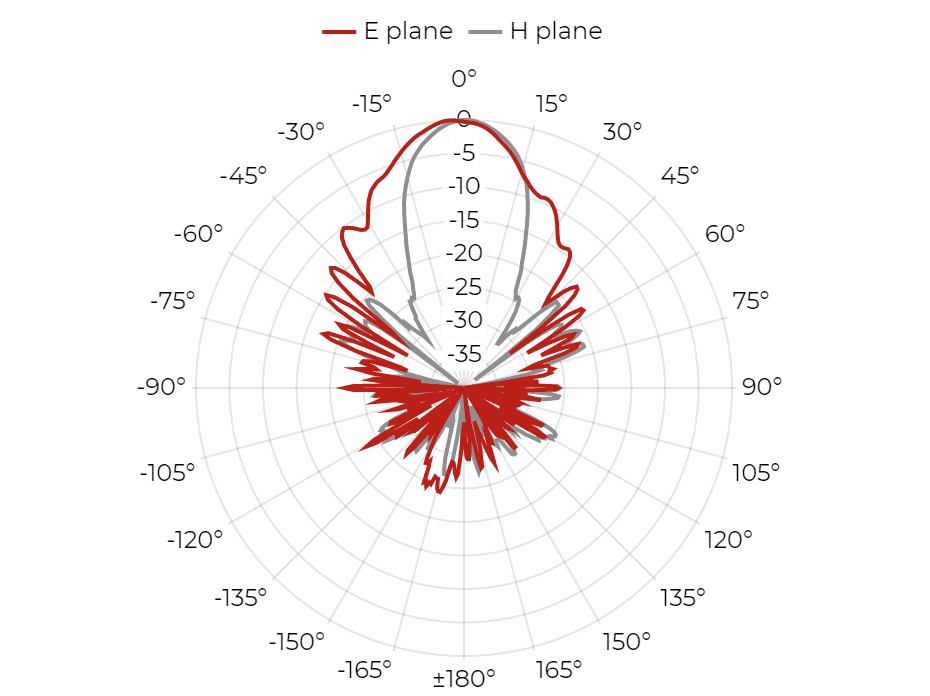

        QRH18 - Port B, 1 GHz

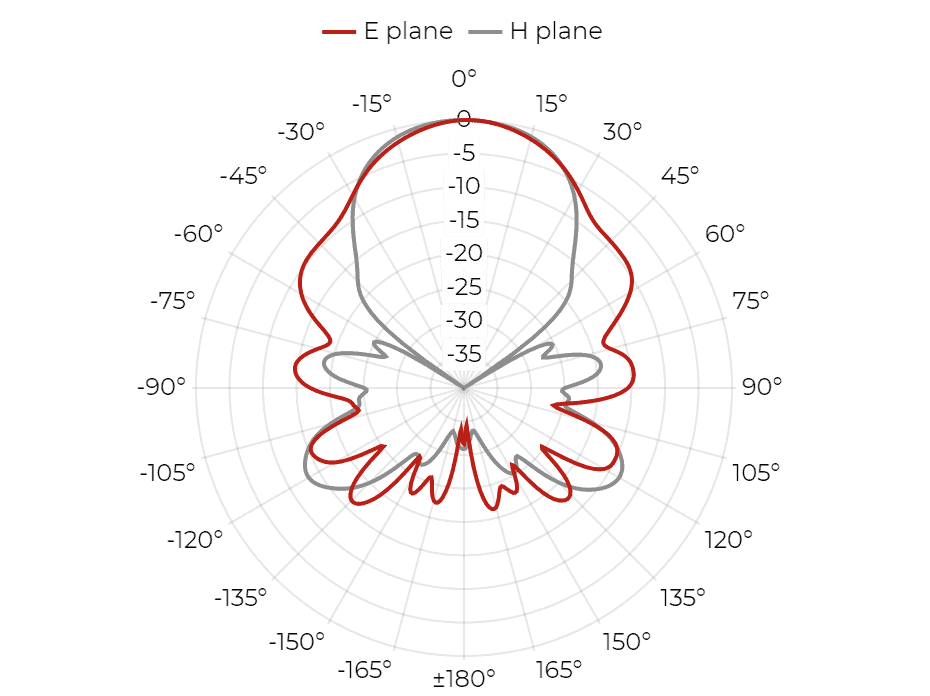

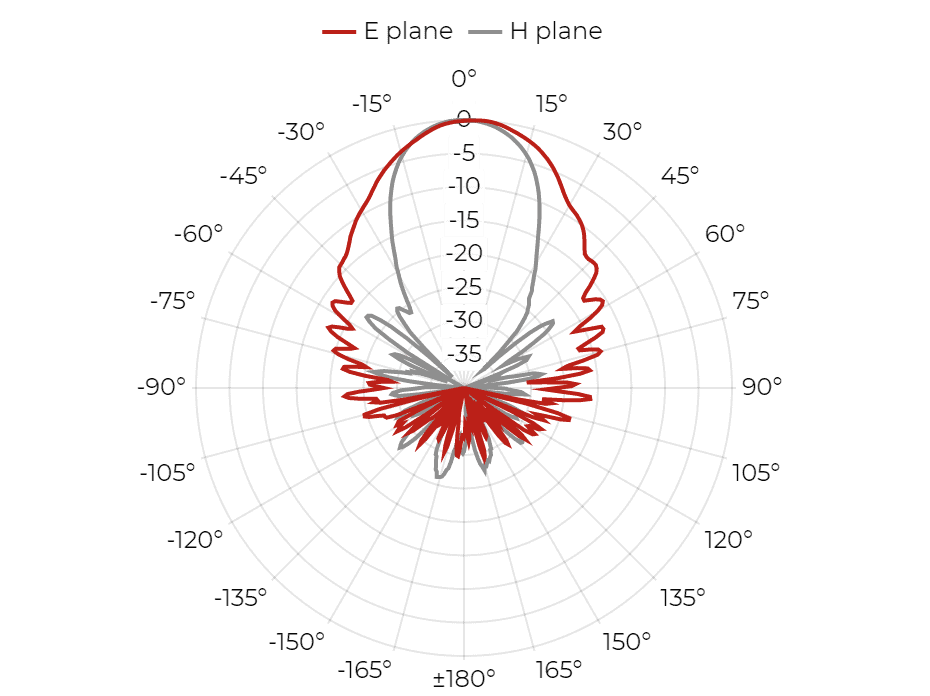

        Port A, 2 GHz

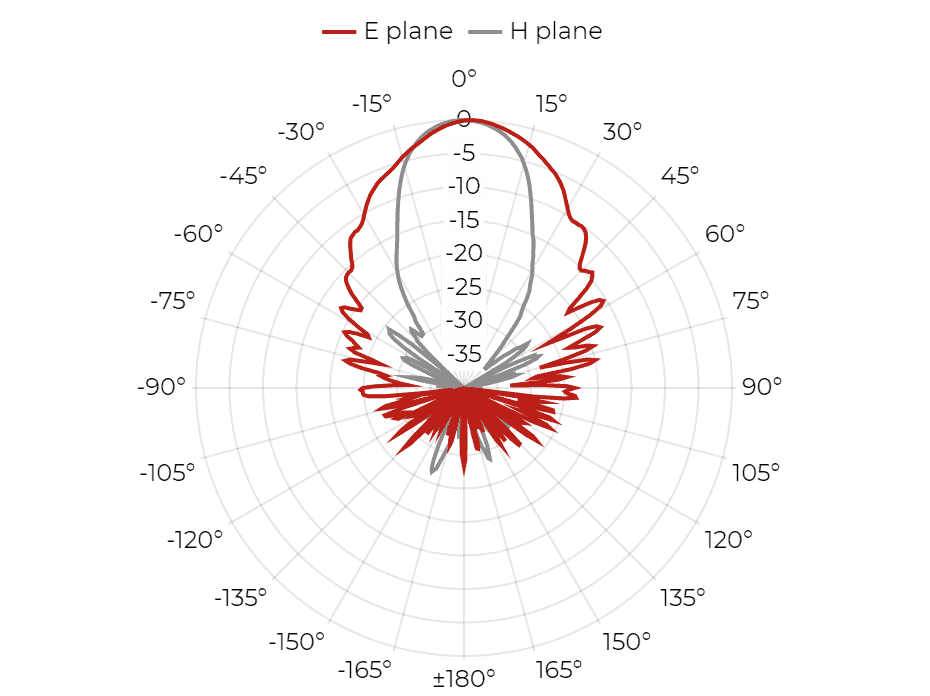

        QRH18 - Port A, 2 GHz

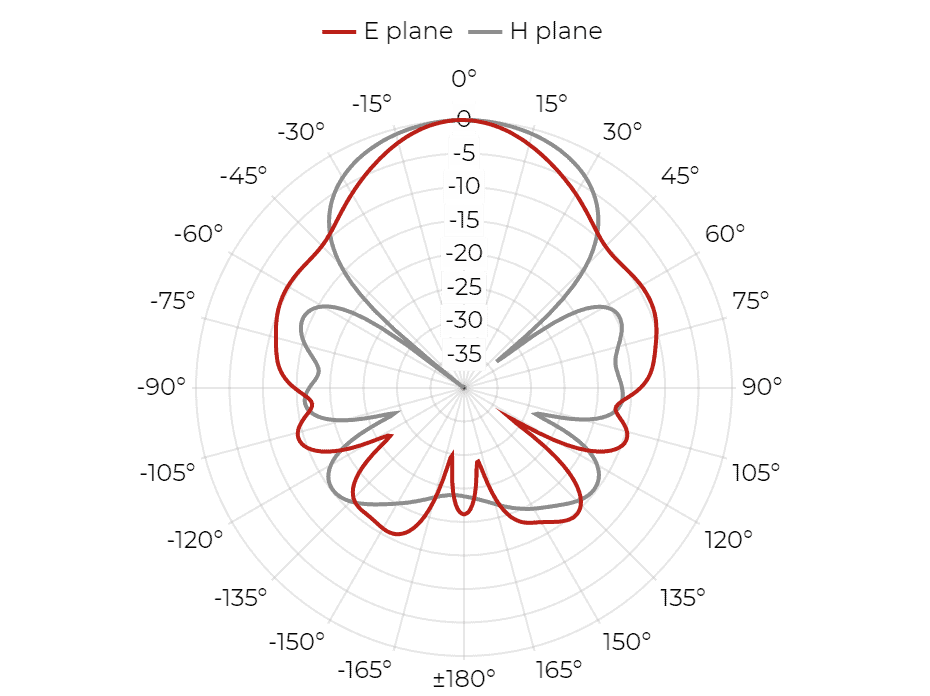

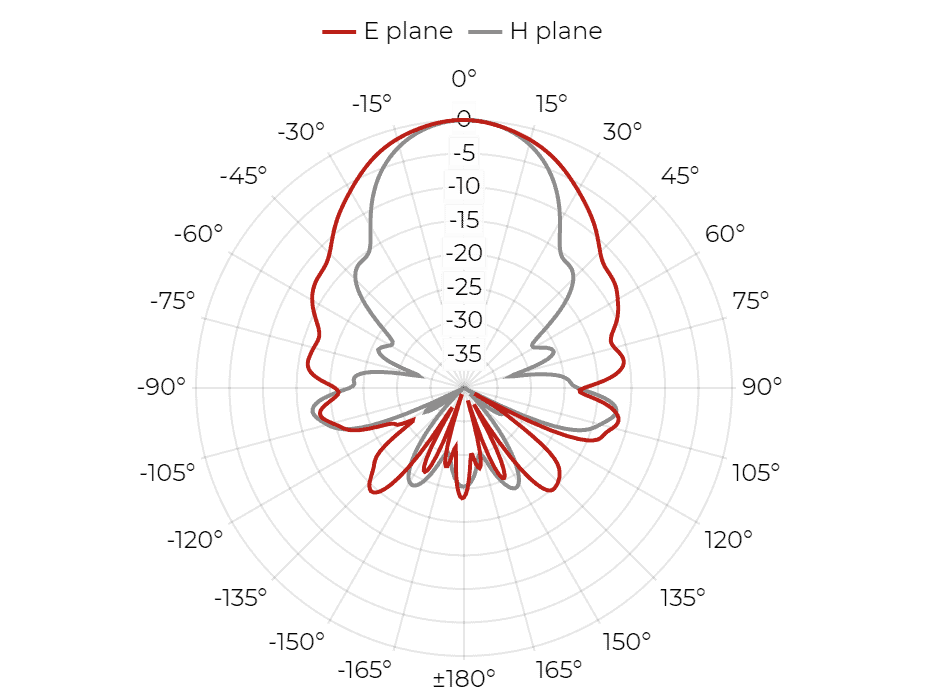

        Port B, 2 GHz

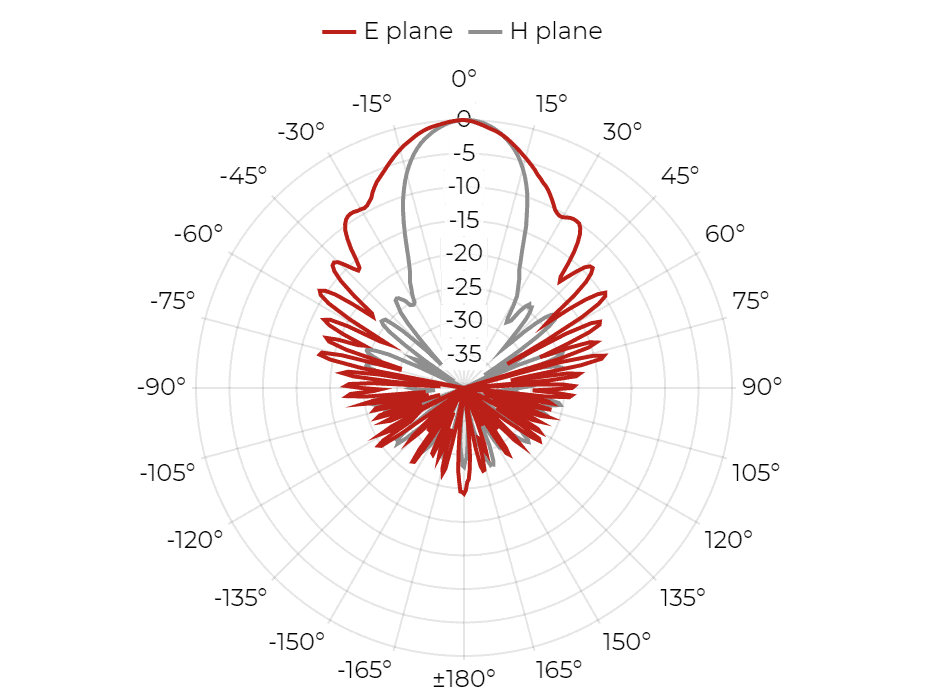

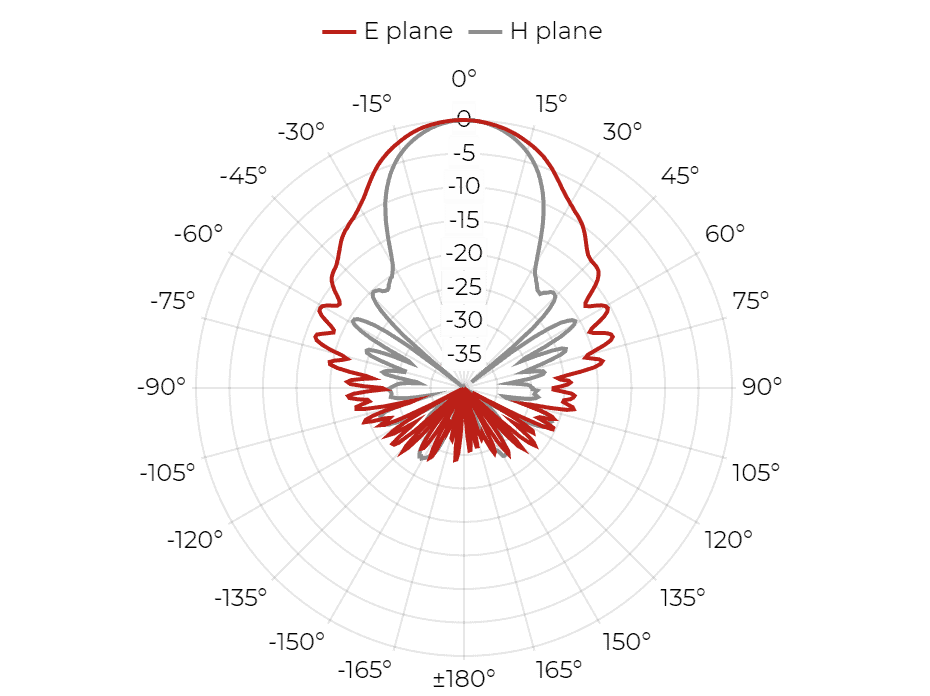

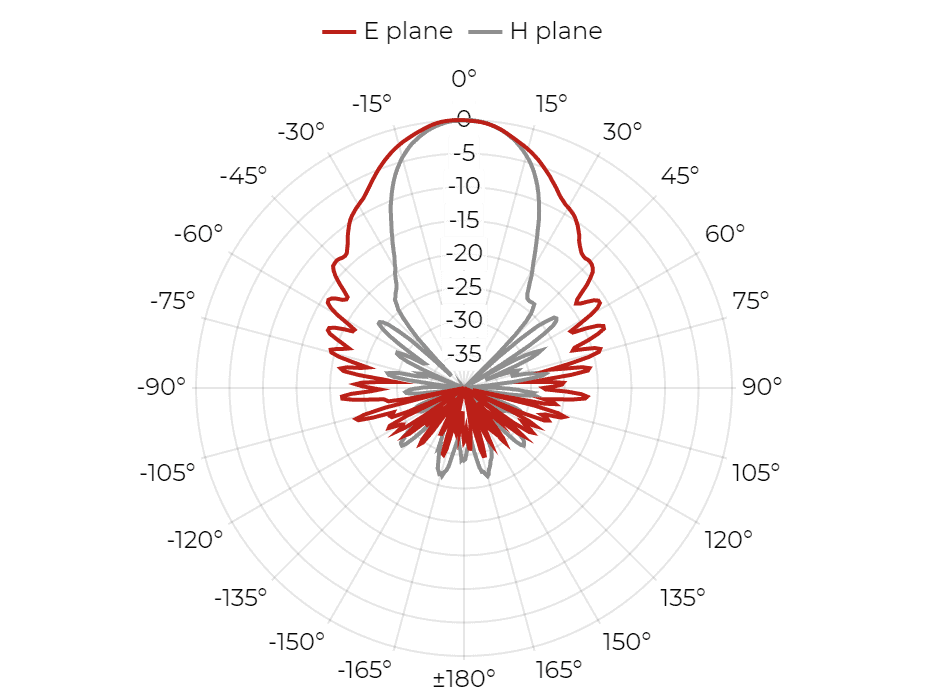

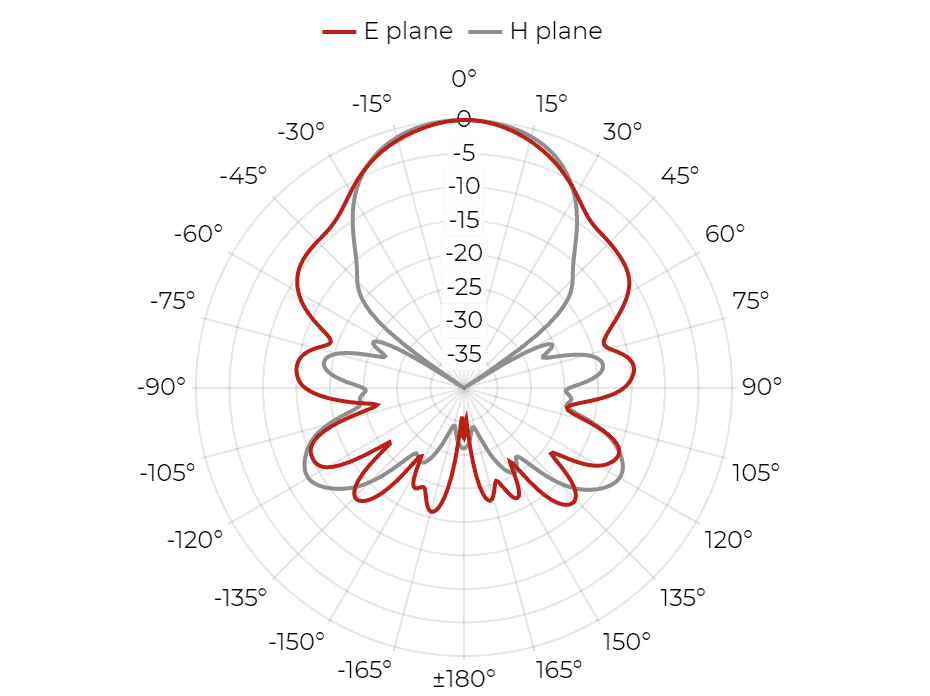

        QRH18 - Port B, 2 GHz

        Packaging and Accessories

        What's in a box

        • QRH18 Antenna
        • Antenna specific mount adapter with ¼ inch inner thread
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Custom services

        • Custom mounting solutions
        • Custom calibration data
