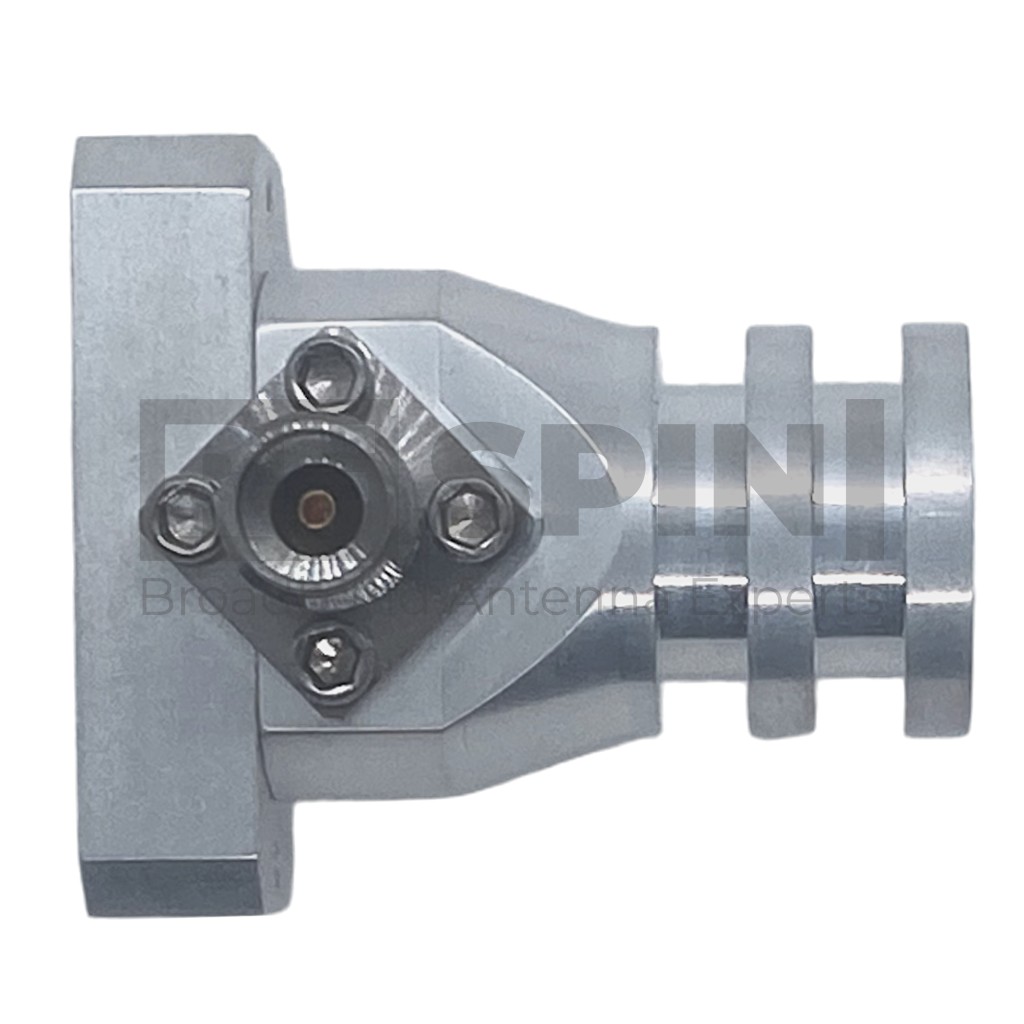

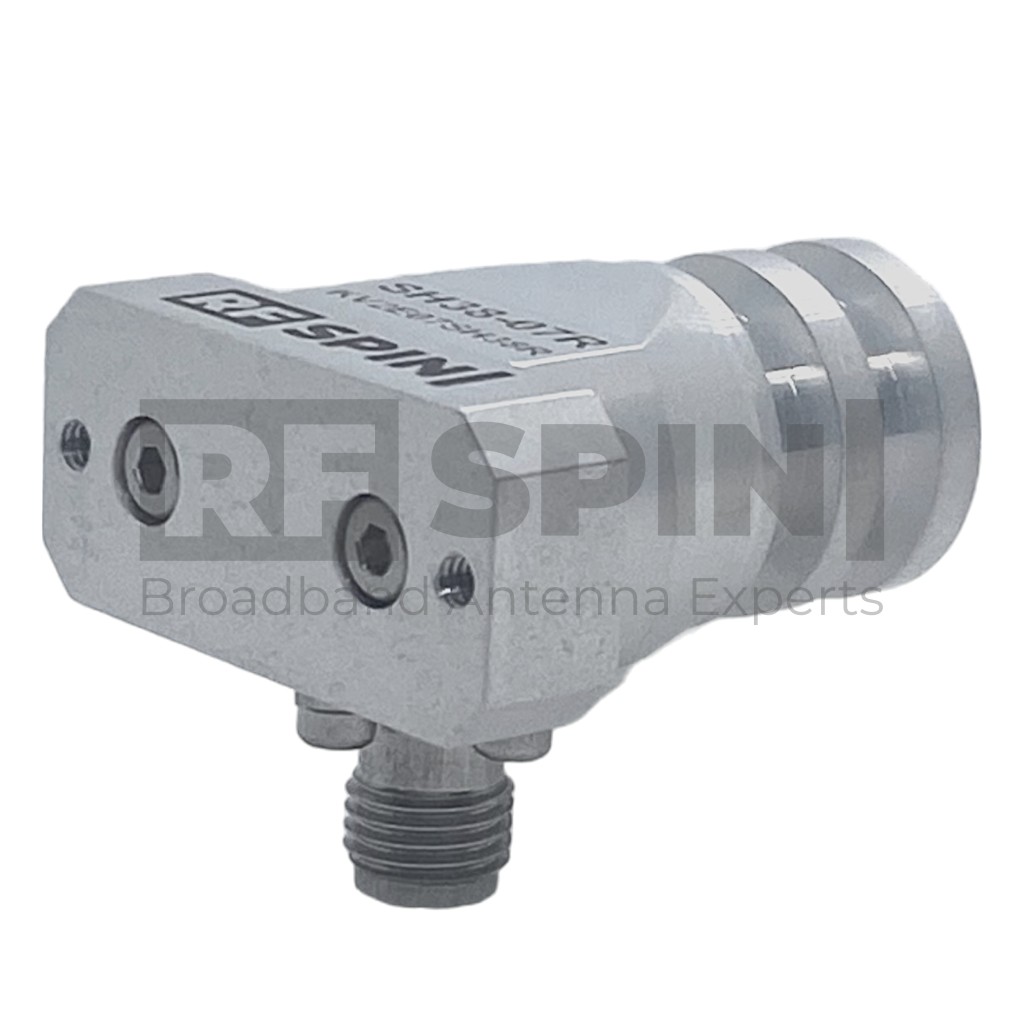

SH38-07L Circularly Single Polarized Antenna | 37.5 GHz – 39 GHz
SH38-07L delivers consistent gain across its operating range for optimal signal strength. The low VSWR ensures efficient transmission, while the compact design allows for seamless integration into your system.
Frequency Range
37.5 GHz – 39 GHz
VSWR (avg.)
1.2
Gain
7.3 – 7.6 dBi
Impedance
50 Ohm
Connector
K (female)
Power (CW / Peak)
15 W / 25 W
Polarization
Circular
Made on demand
Lead time 4-8 weeks
Need more information?
Select files to by sent by e-mail
Features and Specifications
Technical Performance
- Low return loss
- Individual calibration
Design and Surface Treatment
- Corrosion-resistant coating
Manufacturing Technology
- High quality 2.92mm type coaxial connector
- Manufactured using a high grade aluminum alloy
- Extremely durable
Product Packaging Includes
- Circular polarized feed
Product Parameters
Product identification
- Product Name SH38-07L
- Product Category Circularly Single Polarized Antenna
Electrical specifications
- Frequency Range 37.5 GHz – 39 GHz
- VSWR (max.) 1.6
- VSWR (avg.) 1.2
- Impedance 50 Ohm
- Connector K (female)
- Power (CW / Peak) 15 W / 25 W
- Antenna Factor 54 – 55 dB/m
- Polarization Circular
Physical specifications
- Width 26 mm (1.024 in)
- Height 29.6 mm (1.165 in)
- Depth 22 mm (0.866 in)
- Weight 0.015 kg (0.033 lb)
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Beamwidth
Port A, E plane
Port A, H plane
Port B, E plane
Port B, H plane
Packaging and Accessories
What's in a box
- SH38-07L Antenna
Accessories
- Standard mounting flange
Custom services
- Custom mounting solutions
- Custom calibration data
- Radome waterproof enclosure
