PAR0618 Special Purpose Antenna | 6 GHz – 18 GHz
with online calibration protocol and dataset
PRELIMINARY DATASHEET – The 6–18 GHz Offset Parabolic Antenna offers high gain and excellent pattern purity across the full frequency range. Its offset design eliminates feed blockage, improving efficiency and sidelobe performance.
Frequency Range
6 GHz – 18 GHz
VSWR (avg.)
1.1
Gain
28 – 37 dBi
Polarization
Linear
Made on demand
Lead time 4-8 weeks
Need more information?
-
Datasheet
Select files to by sent by e-mail
This product includes
Antenna Portal Access
Product Highlights
Product Parameters
Product identification
- Product Name PAR0618
- Product Category Special Purpose Antenna
Electrical specifications
- Frequency Range 6 GHz – 18 GHz
- VSWR (max.) 1.3
- VSWR (avg.) 1.1
- Waveguide Size WRD650
- Polarization Linear
Physical specifications
- Width 568 mm (22.362 in)
- Height 628 mm (24.724 in)
- Depth 611 mm (24.055 in)
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Mechanical Drawings

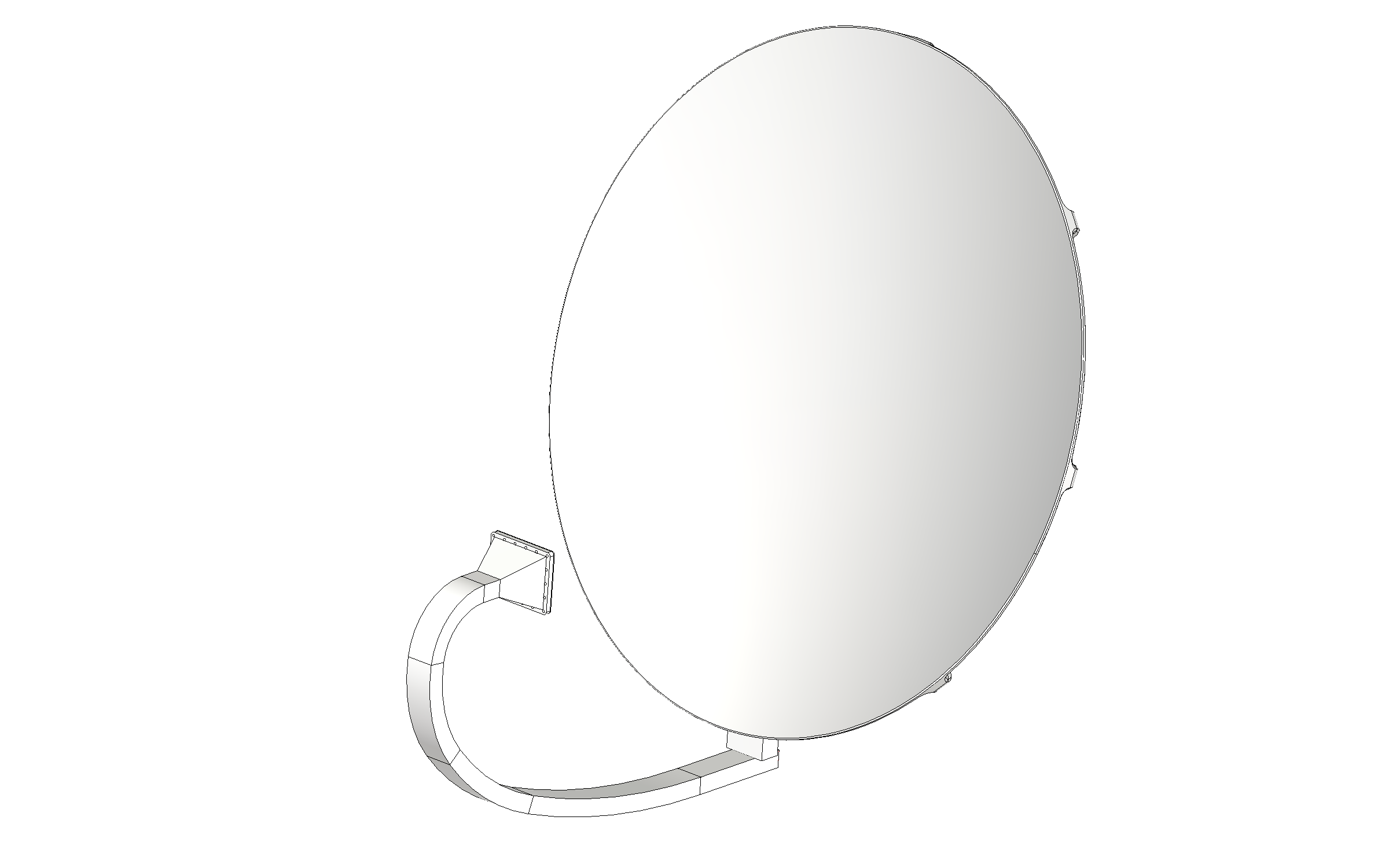

Antenna
Parameters and Performance
Typical parameters
VSWR
Gain
Packaging and Accessories
Accessories
- Standard mounting flange
