        RF SPIN

        Broadband Antenna Solutions

        H-A50-W20

        Pyramidal Horn Antenna

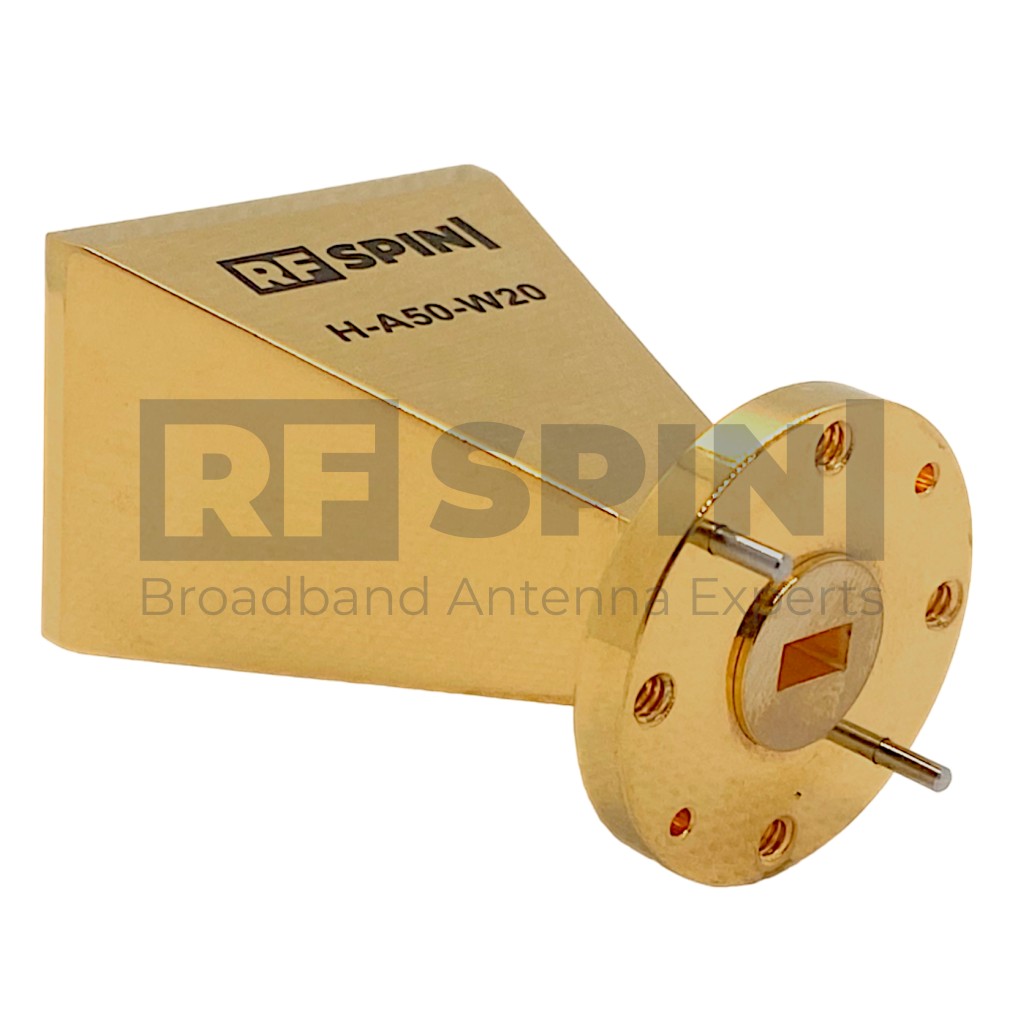

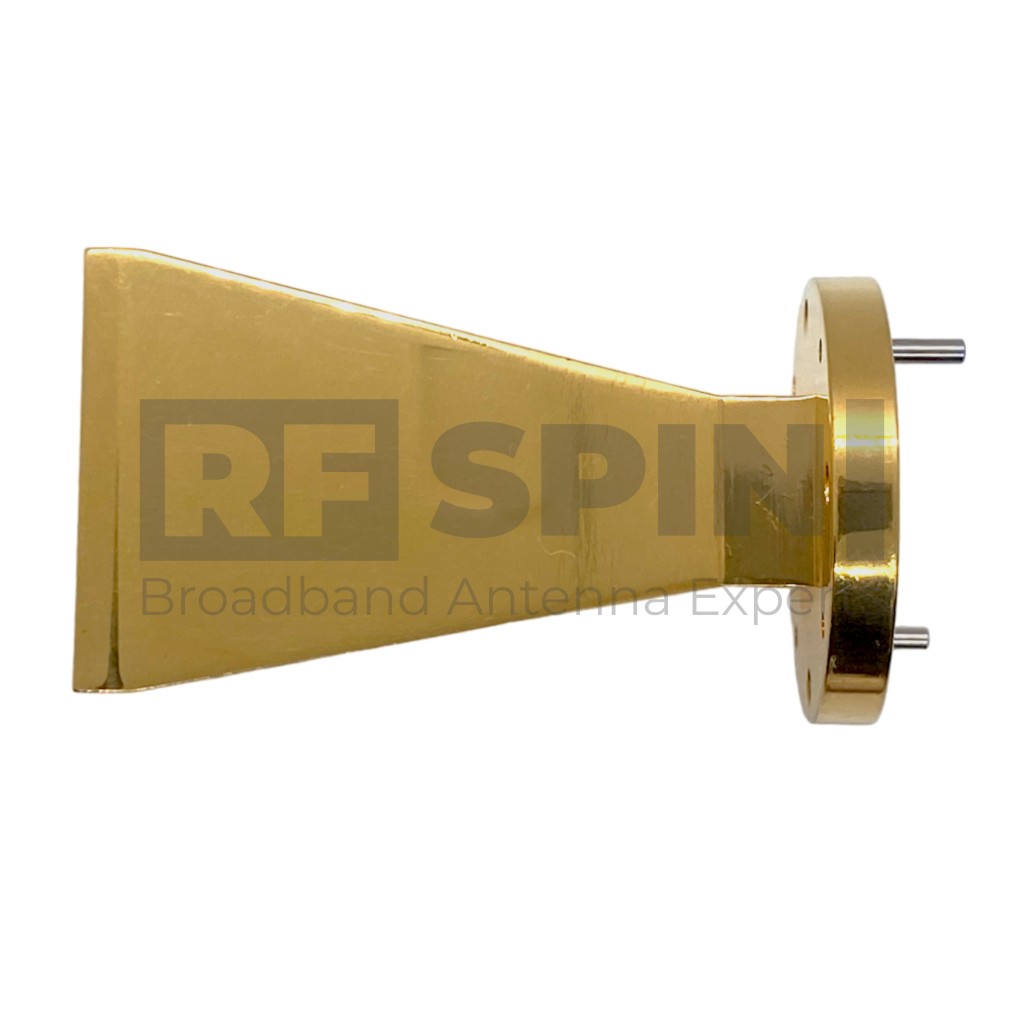

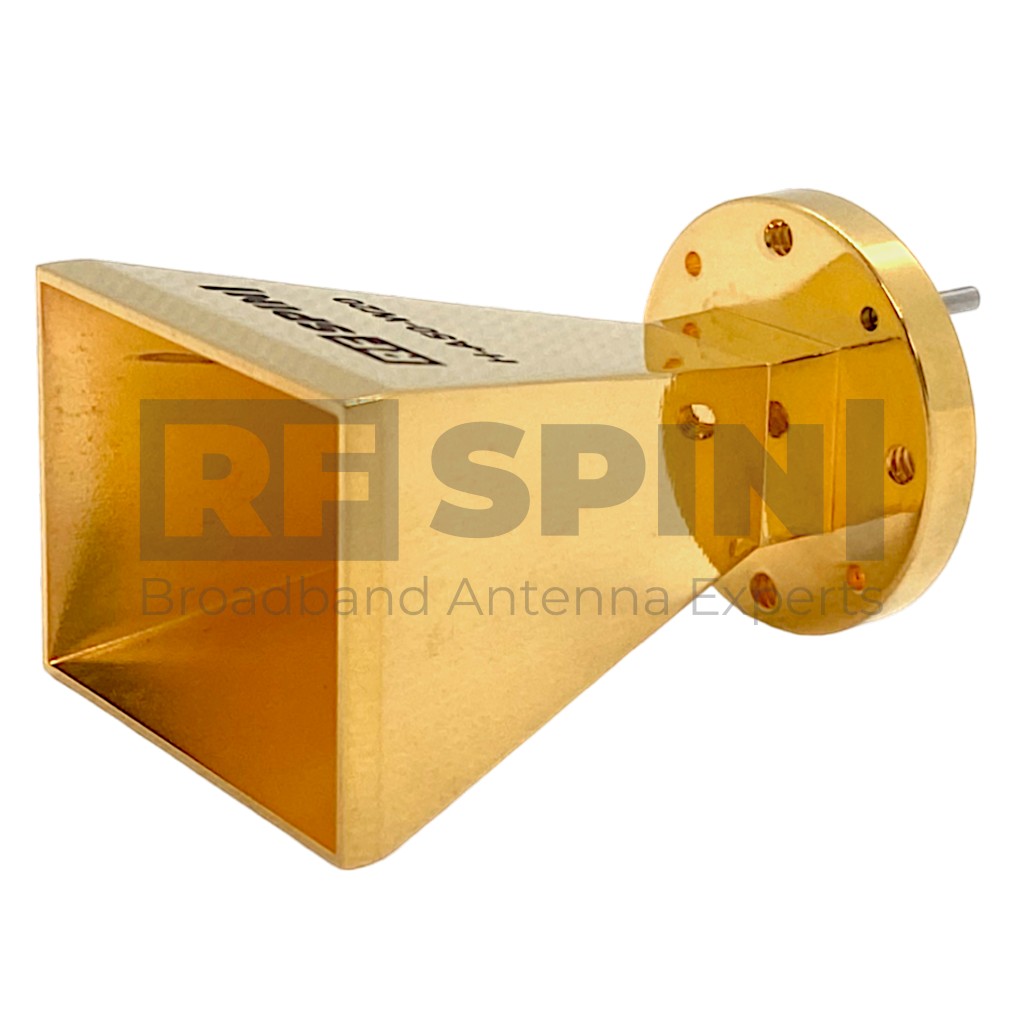

        Pyramidal horn antenna with the surface finish from Alodine 2040. H-A50-W20 pyramidal horn antenna is made with precision and care with the latest technology to deliver accurate and reliable antenna measurements.  The operating frequency is from 33 GHz up to 50 GHz with a flat Gain of 20 dBi. The H-A50-W20 can be supplemented with a corresponding Waveguide to Coax Adapter.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss

        Design and Surface Treatment

        • Corrosion-resistant coating

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable

        Product Packaging Includes

        • Antenna

        Product Parameters

        Product identification

        • Product Name H-A50-W20
        • Product Category Pyramidal Horn Antenna

        Electrical specifications

        • Frequency Range 33 GHz – 50 GHz
        • VSWR (max.) 1.14
        • VSWR (avg.) 1.1
        • Waveguide Size WR22
        • Waveguide Flange UG-383/U

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Parameters and Performance

        Typical parameters

        VSWR

        H-A50-W20 - VSWR

        Gain

        H-A50-W20 - Gain

        Antenna Factor

        H-A50-W20 - Antenna Factor

        Beamwidth

        Packaging and Accessories

        What's in a box

        • H-A50-W20 Antenna

        Accessories

        • Standard mounting flange

        Other Similar Products

        H-A50-W15
        Pyramidal Horn Antenna
        Frequency Range

        33 GHz – 50 GHz

        VSWR (avg.)

        1.1

        H-A60-W15
        Pyramidal Horn Antenna
        Frequency Range

        40 GHz – 60 GHz

        VSWR (avg.)

        1.1

        H-A60-W20
        Pyramidal Horn Antenna
        Frequency Range

        40 GHz – 60 GHz

        VSWR (avg.)

        1.1

        Polarization

        Linear
