        H-A33-W15

        Pyramidal Horn Antenna

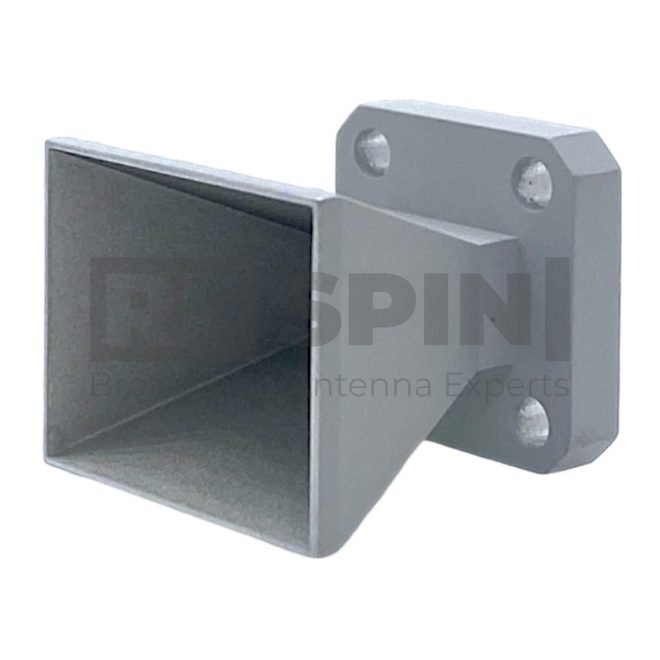

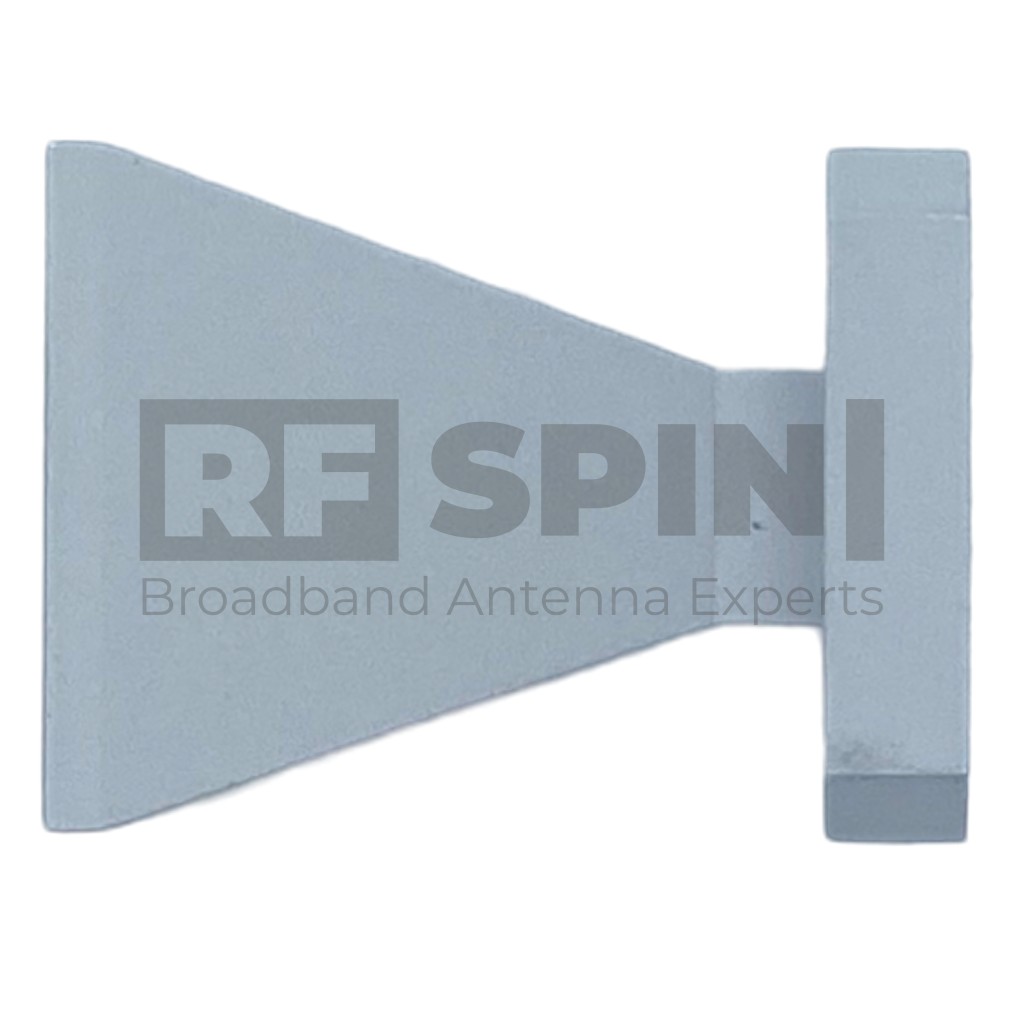

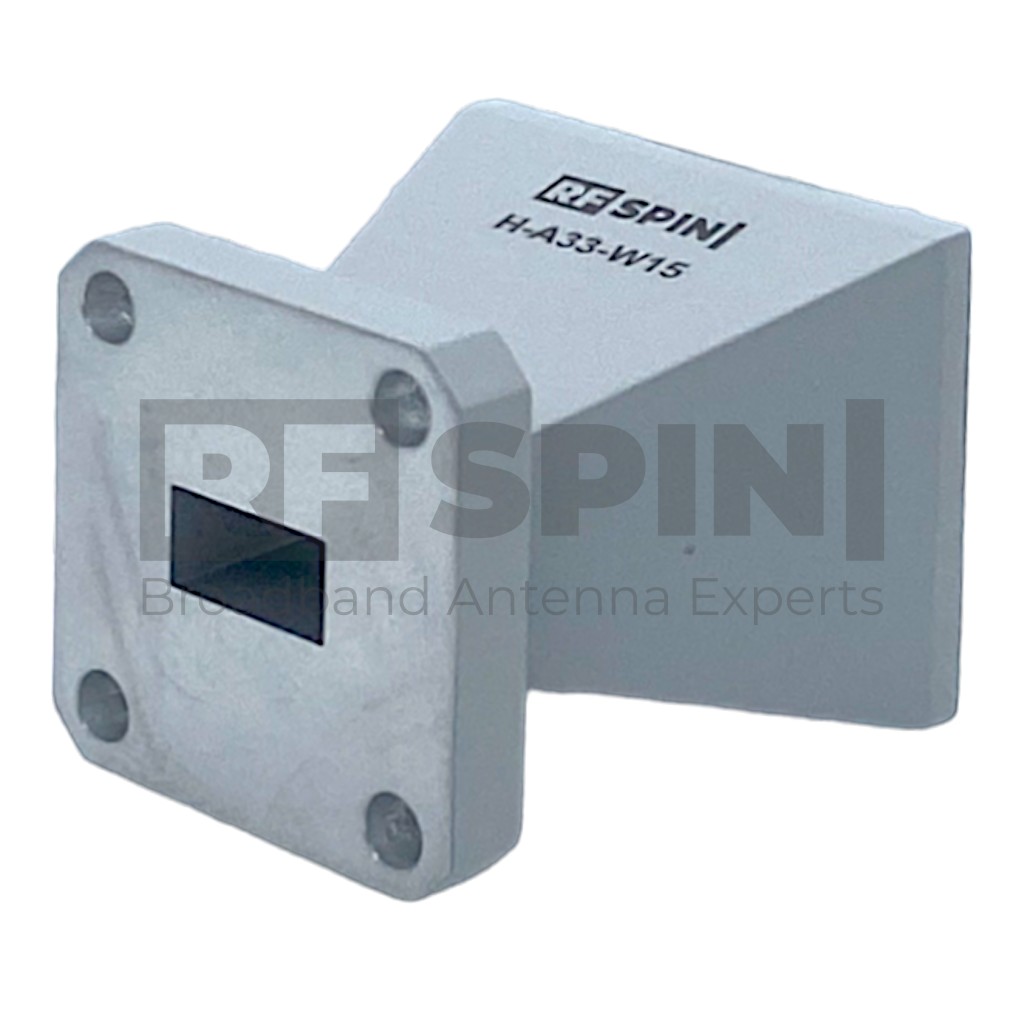

        Pyramidal horn antenna with the surface finish from Alodine 2040. H-A33-W15 pyramidal horn antenna is made with precision and care with the latest technology to deliver accurate and reliable antenna measurements.  The operating frequency is from 22 GHz up to 33 GHz with a flat Gain of 15 dBi. The H-A33-W15 can be supplemented with a corresponding Waveguide to Coax Adapter.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss

        Design and Surface Treatment

        • Corrosion-resistant coating

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable

        Product Packaging Includes

        • Antenna

        Product Parameters

        Product identification

        • Product Name H-A33-W15
        • Product Category Pyramidal Horn Antenna

        Electrical specifications

        • Frequency Range 22 GHz – 32.99 GHz
        • VSWR (max.) 1.14
        • VSWR (avg.) 1.1
        • Waveguide Size WR34
        • Waveguide Flange UG-1530/U

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Packaging and Accessories

        What's in a box

        • H-A33-W15 Antenna

        Accessories

        • Standard mounting flange
