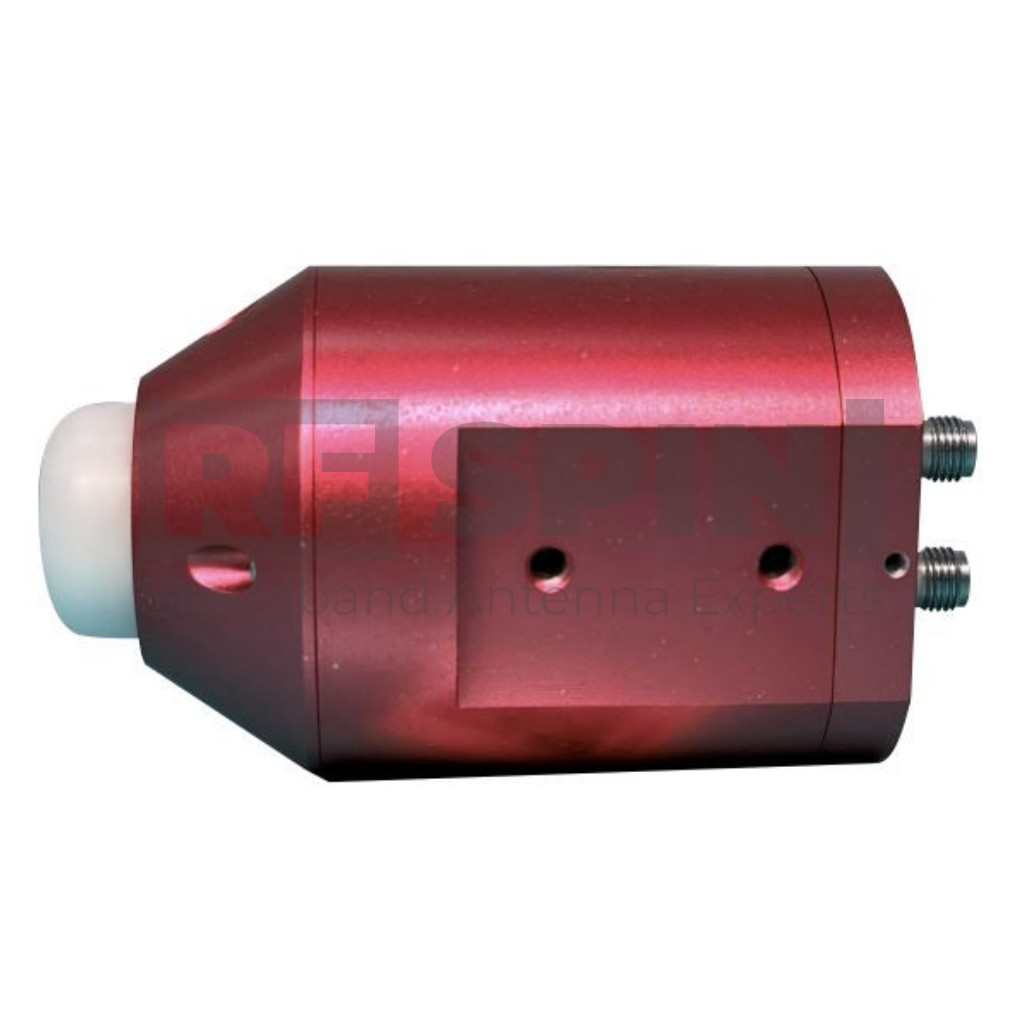

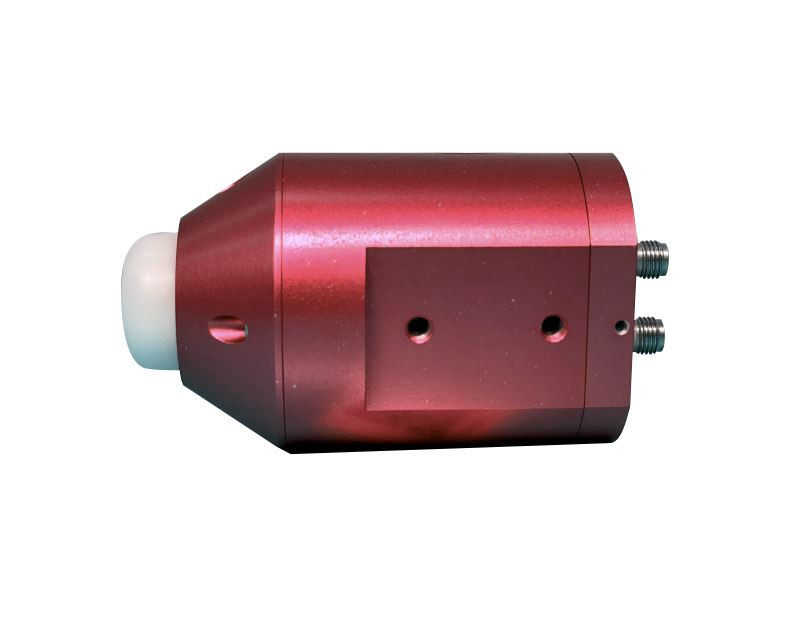

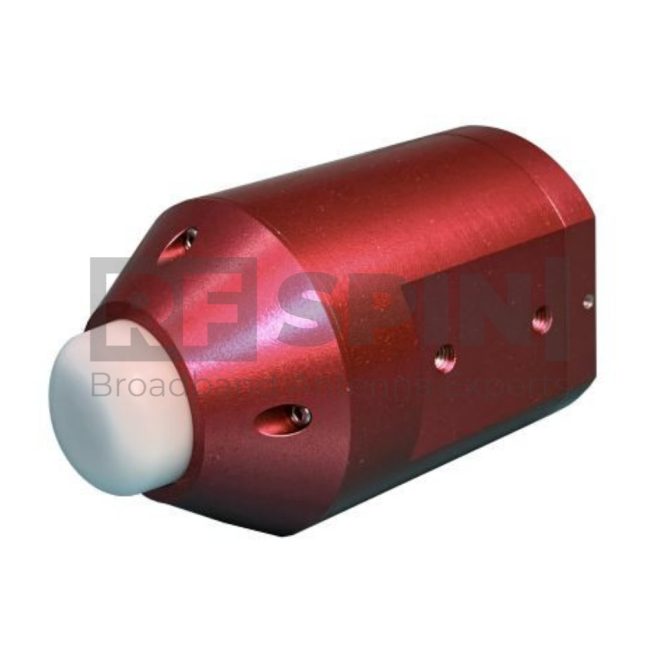

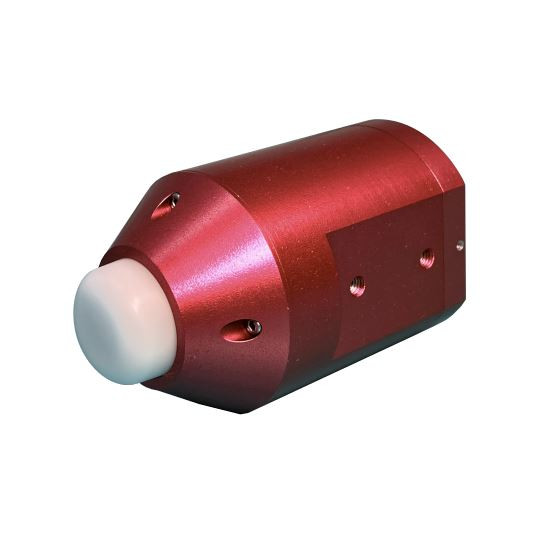

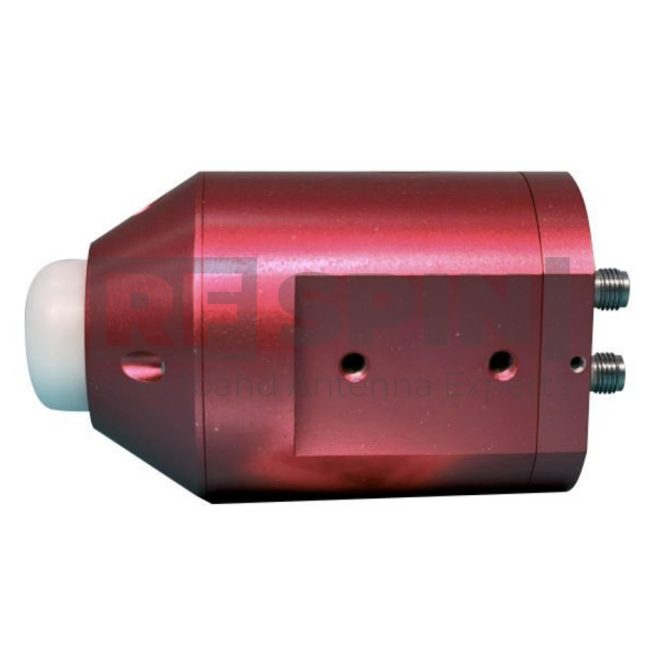

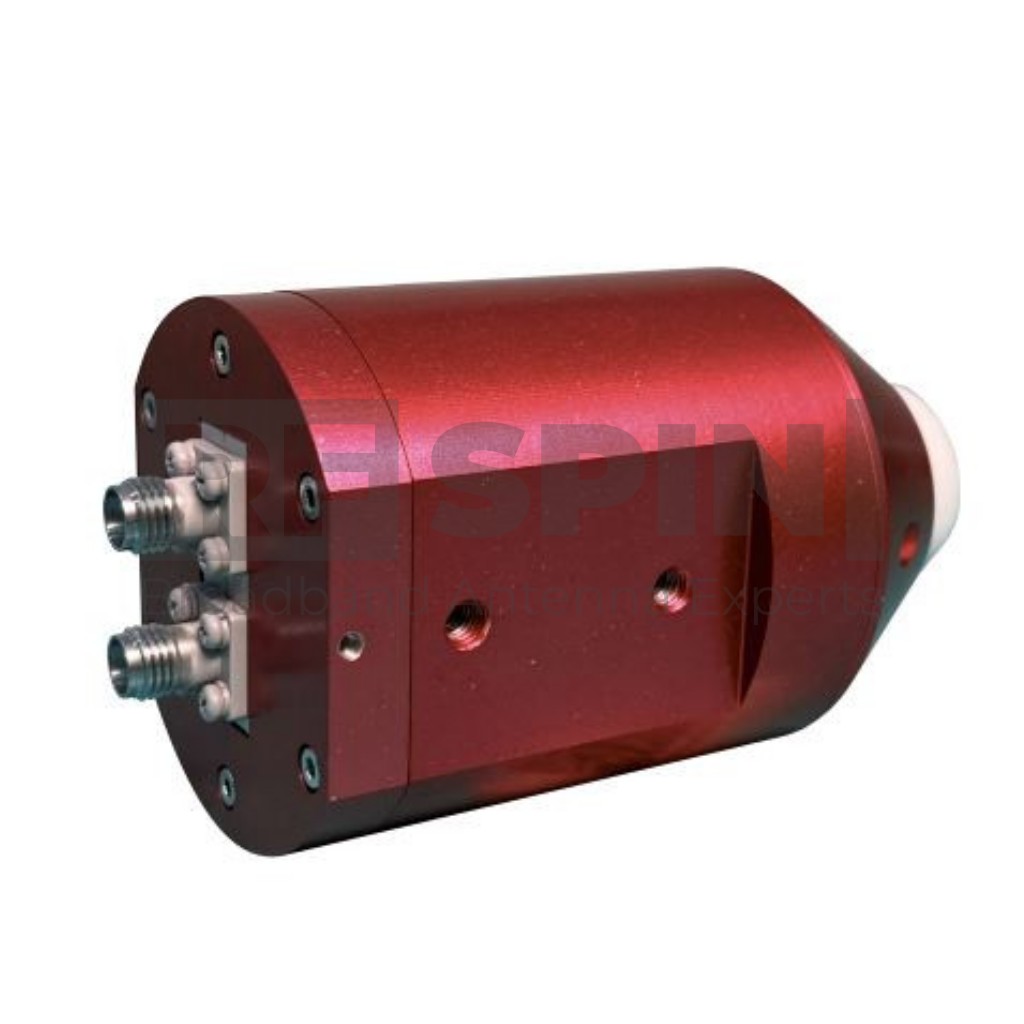

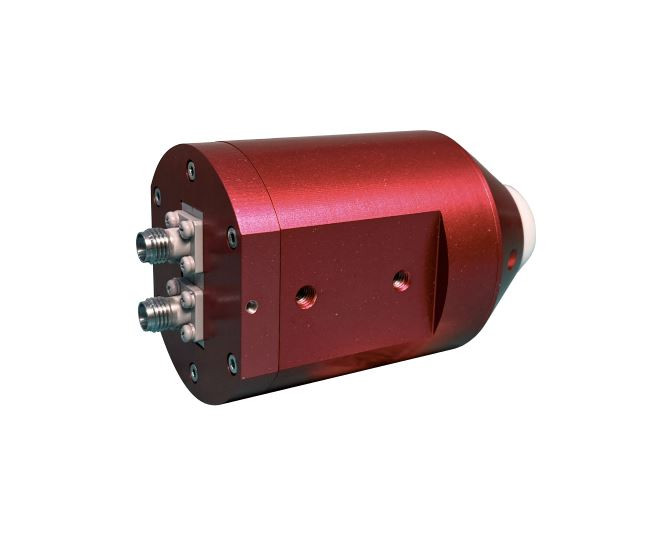

        CDHC1015

        Special Purpose Antenna

        Cross-dipole that operates from 10 GHz to 15 GHz. With an integrated hybrid coupler this antenna allows to make left- or right-hand circular polarization. Fully waterproof casing equipped with ABS radome is stiff and durable, made with as few parts as possible to ensure accuracy.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration

        Design and Surface Treatment

        • Protective water-resistant case
        • Corrosion-resistant coating

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable
        • High quality SMA type coaxial connector

        Product Packaging Includes

        • Antenna

        Product Parameters

        Product identification

        • Product Name CDHC1015
        • Product Category Special Purpose Antenna

        Electrical specifications

        • Frequency Range 10 GHz – 15 GHz
        • VSWR (max.) 1.6
        • VSWR (avg.) 1.2
        • Power (CW / Peak) 5 W / 10 W
        • Antenna Factor 37 – 42 dB/m
        • Polarization Circular (with hybrid)

        Physical specifications

        • Width 47 mm (1.850 in)
        • Height 88 mm (3.465 in)
        • Depth 47 mm (1.850 in)
        • Weight 0.227 kg (0.500 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Parameters and Performance

        Typical parameters

        VSWR

        CDHC1015 - VSWR

        Gain

        CDHC1015 - Gain

        Antenna Factor

        CDHC1015 - Antenna Factor

        Beamwidth

        Port A, E plane

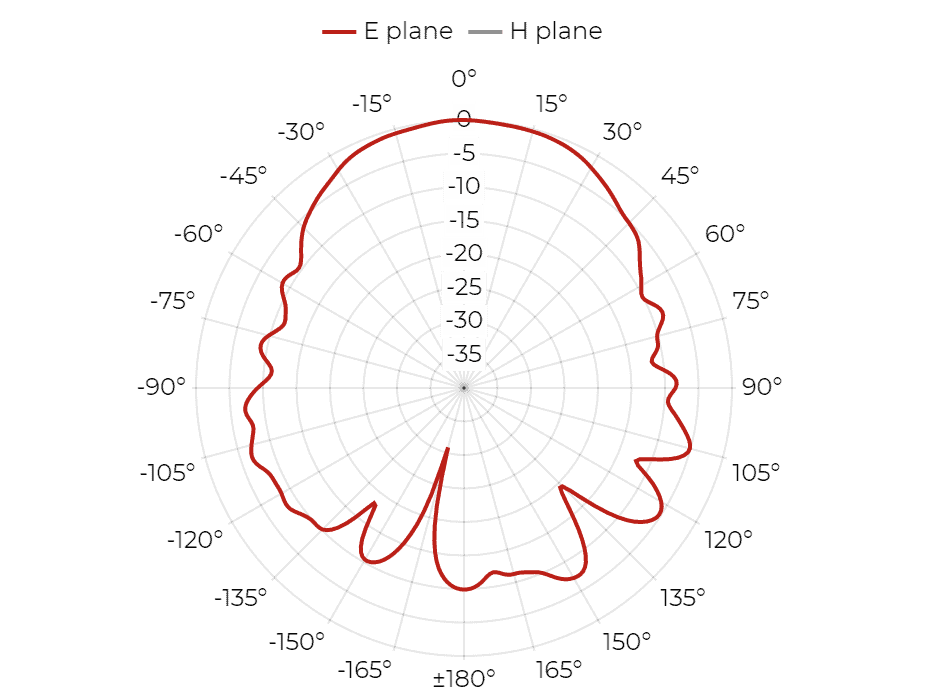

        CDHC1015 - Port A, E plane

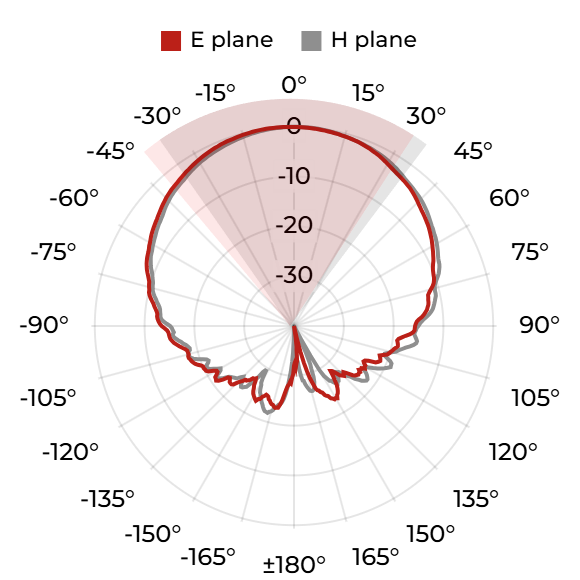

        Port A, H plane

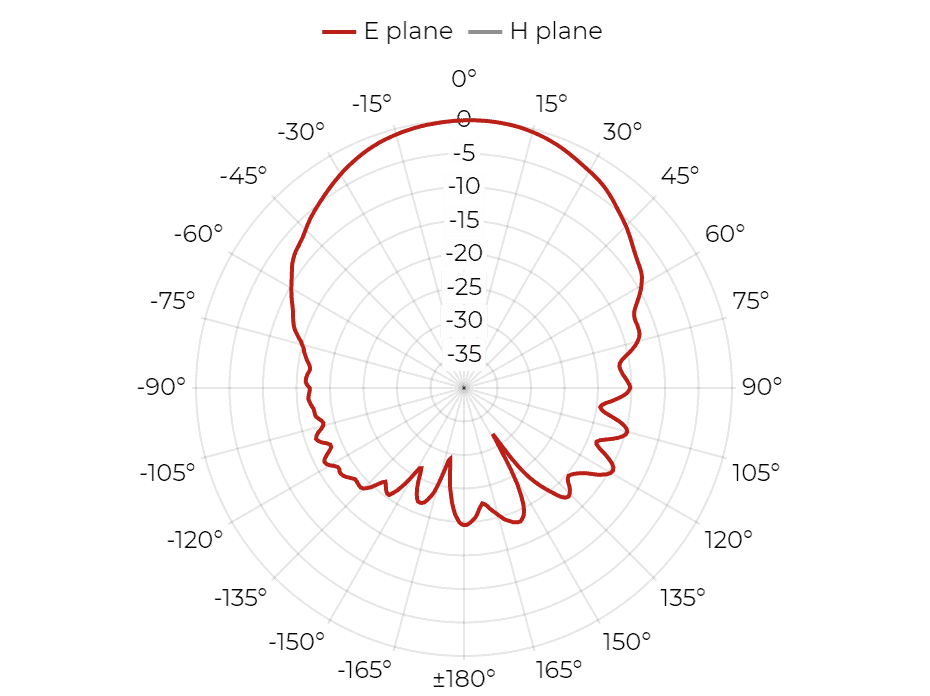

        CDHC1015 - Port A, H plane

        Radiation Patterns

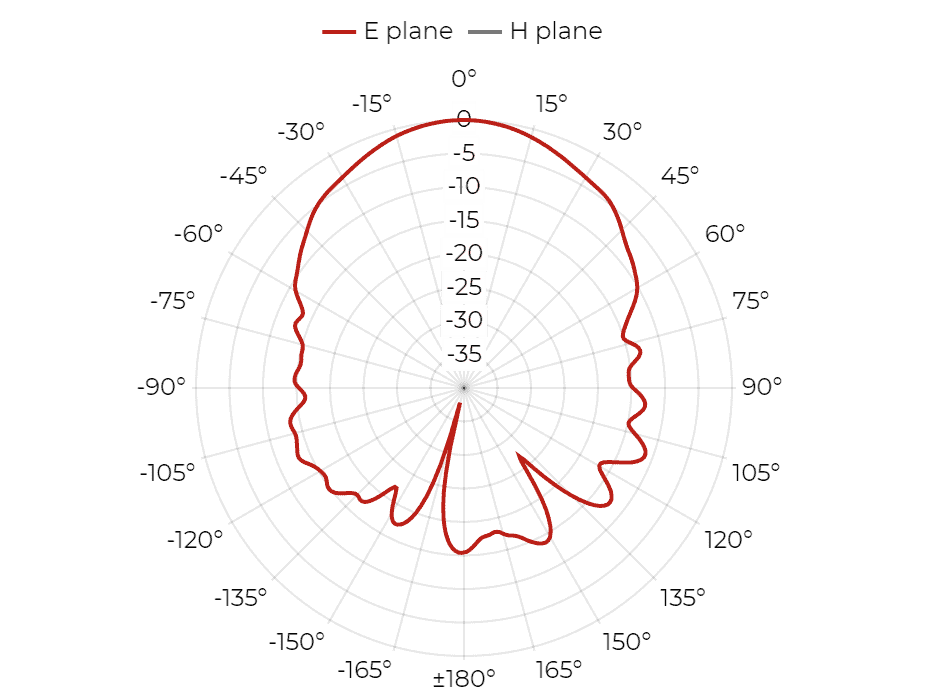

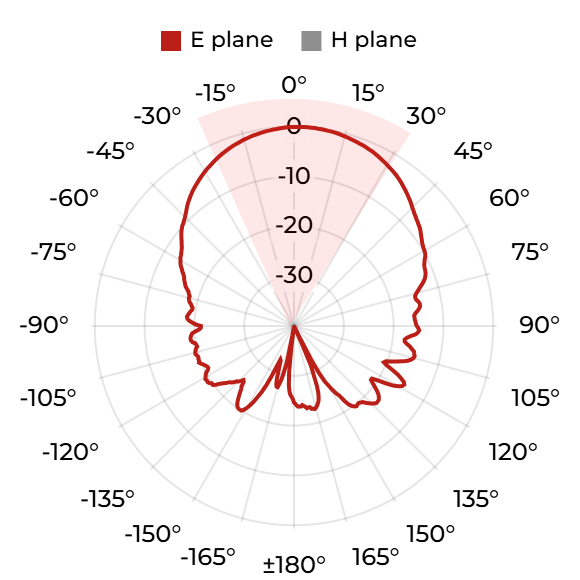

        measured against lin. pol. 10 GHz

        CDHC1015 - measured against lin. pol. 10 GHz

        measured against lin. pol. 11 GHz

        CDHC1015 - measured against lin. pol. 11 GHz

        measured against lin. pol. 12 GHz

        CDHC1015 - measured against lin. pol. 12 GHz

        measured against lin. pol. 13 GHz

        CDHC1015 - measured against lin. pol. 13 GHz

        Packaging and Accessories

        What's in a box

        • CDHC1015 Antenna
        • Factory calibration certificate
        • Full calibration report of each antenna
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Custom services

        • Custom mounting solutions
        • Custom calibration data
