        AWC187EFS

        Waveguide to Coax Adapter

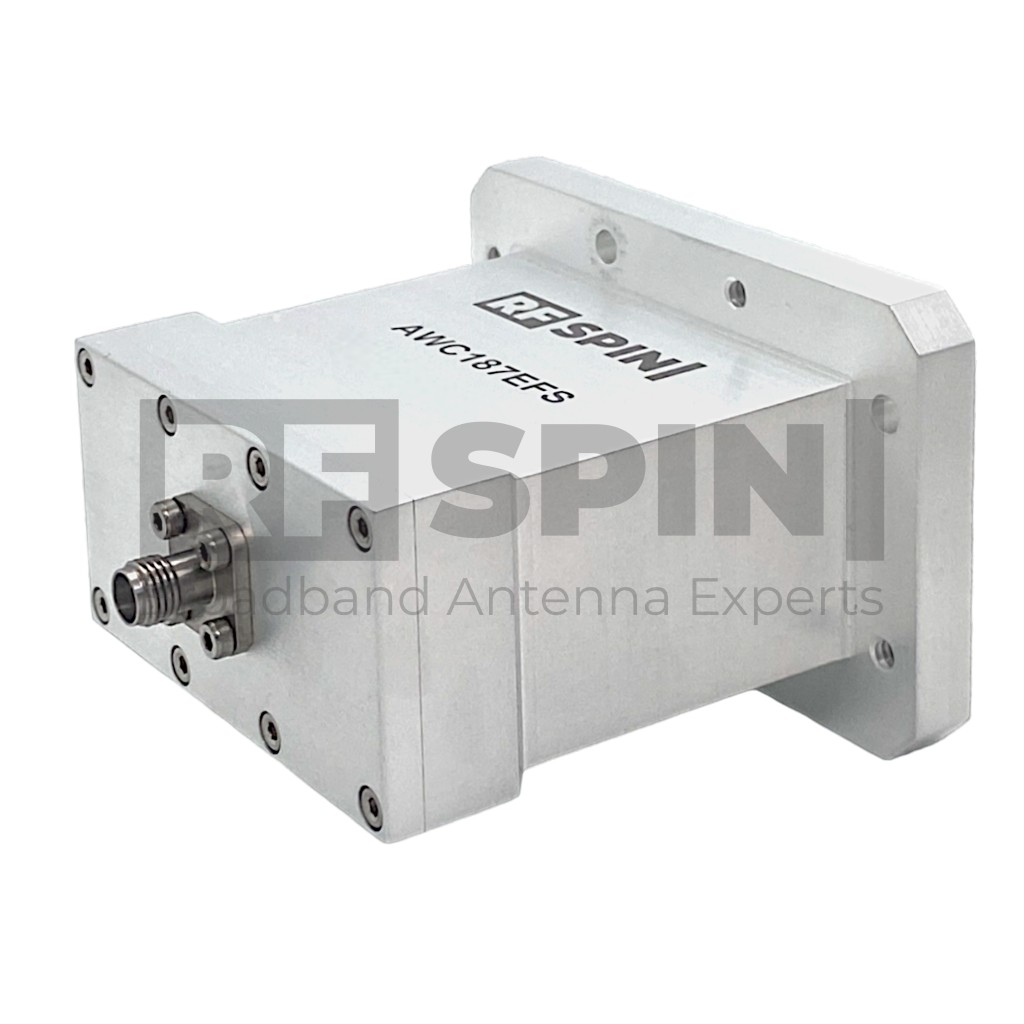

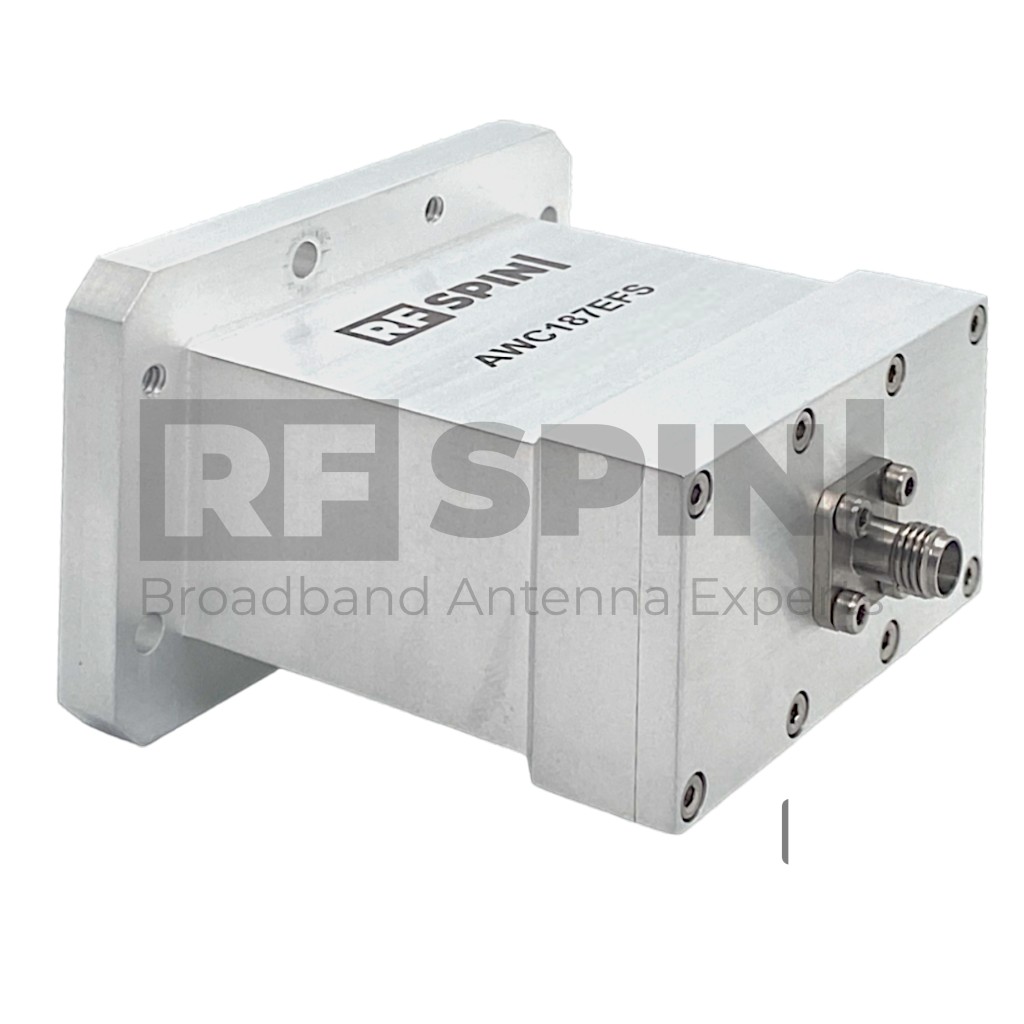

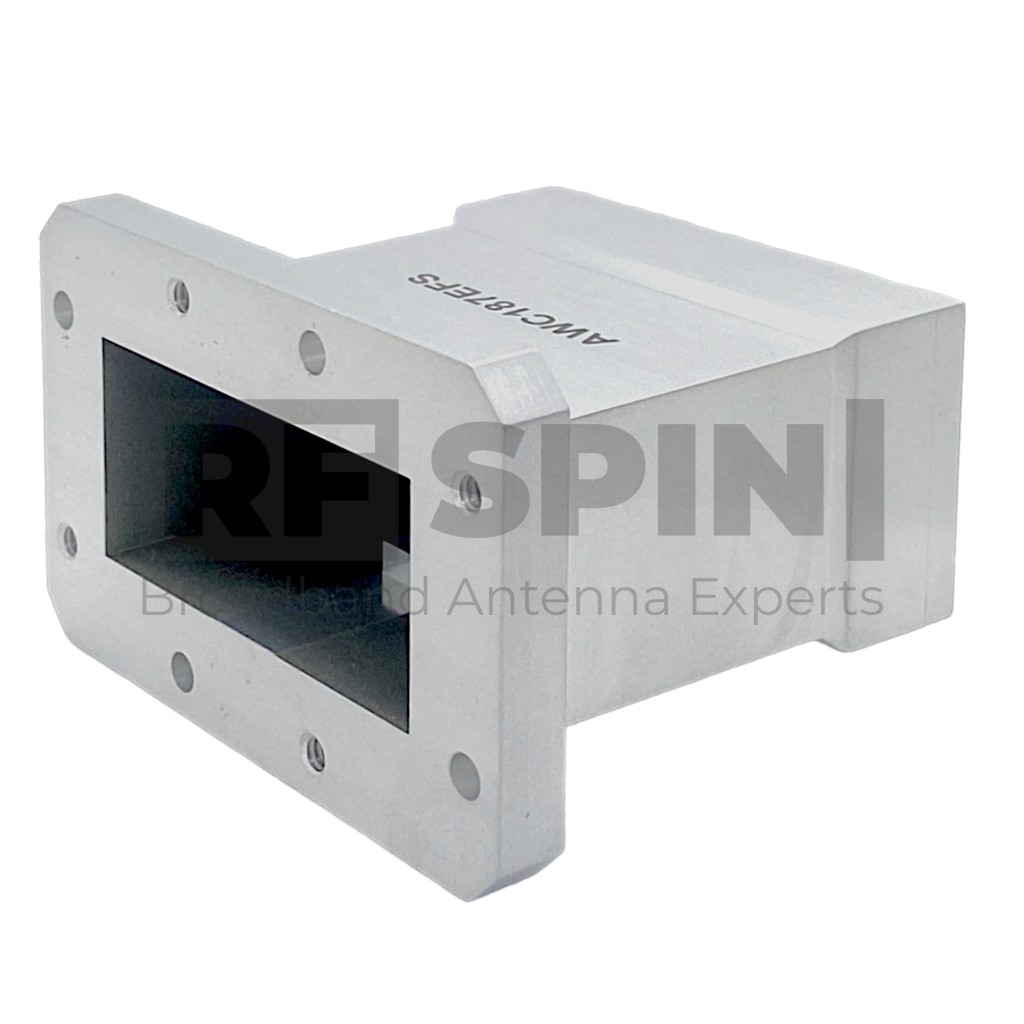

        This Waveguide to Coax Adapter AWC187EFS is manufactured with an end-launch design. RF SPIN uses only high-grade aluminum and is designed with the fewest components to ensure top quality and superb performance. This AWC187EFS has waveguide size WR-187 and flange. Using a great quality SMA female connector that is 50 Ohm is a matter of course.

        Waveguide to Coax Adapter covers a frequency band from 3.9 GHz up to 5.8 GHz ensuring the extra performance of VSWR lower than 1.25 and low insertion loss.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration

        Design and Surface Treatment

        • Corrosion-resistant coating

        Manufacturing Technology

        • High quality SMA type coaxial connector

        Product Packaging Includes

        • Waveguide to Coax Adapter

        Product Parameters

        Product identification

        • Product Name AWC187EFS
        • Product Category Waveguide to Coax Adapter

        Electrical specifications

        • Frequency Range 3.9 GHz – 5.8 GHz
        • VSWR (max.) 1.25
        • VSWR (avg.) 1.14
        • Impedance 50 Ohm
        • Insertion Loss (max.) 0.6 dB
        • Connector SMA (female)
        • Power (CW / Peak) 50 W / 100 W

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Packaging and Accessories

        What's in a box

        • AWC187EFS Device

        Accessories

        • Standard mounting flange

        Custom services

        • Custom mounting solutions
